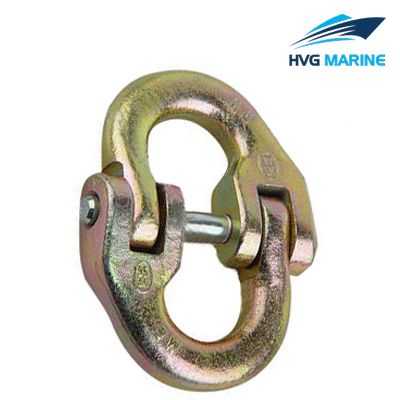

HVG RIGGING-LIFTING 0182: Galvanized Connecting Link

Galvanized connecting link can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. It is made by quenched and tempered alloy steel for high tensile strength and wear resistance. They can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes.

Product Details:

1. Item: Galvanized connectint link
2. Grade: G80
3. Material: Alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, electric galvanized, Color painted
6. WLL: 1.4T-39.3T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 7.6mm-40mm
10. Special specifications and marks can be made according to customers requirement

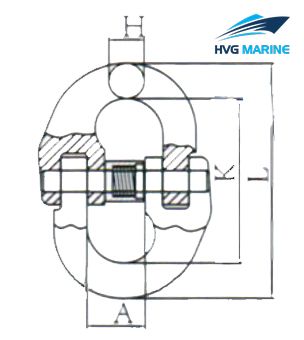

Technical specification:

Specification:

Size	Weight(kg)	WLL(T)	B.L(T)	A(mm)	H(mm)	K(mm)	L(mm)
6	0.1	1.4	5.6	14	7.6	44.5	60
8	0.22	2.5	10	18.5	10	61.5	84.5
10	0.45	4	16	23	12.6	72	97.5
13	1.15	6.7	26.8	27.5	16.8	89	127
16	1.75	10	40	33.5	21	103	145
20	2.7	16	64	42	24.5	116	175
22	4.02	19	76	48	27	135	193
26	5.1	26.5	106	61	32	164	228
32	8.5	39.3	157.2	80	40	194	274
