HVG RIGGING-LIFTING 0162

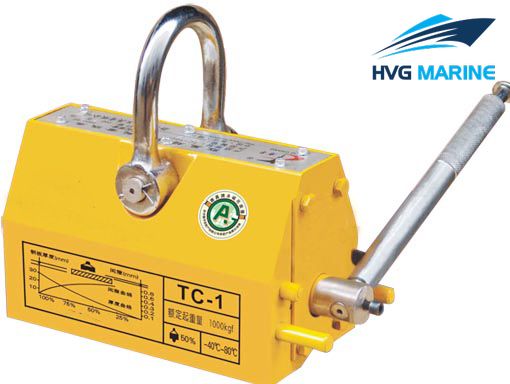

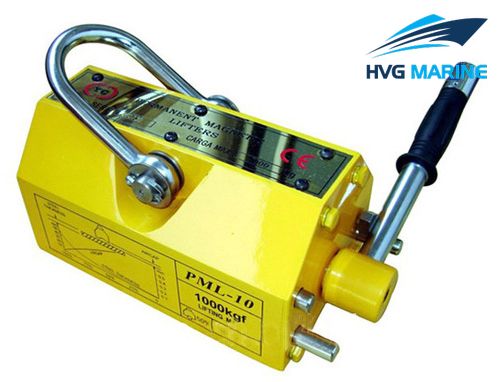

HVG RIGGING-LIFTING 0162: Manual Permanent Magnetic Lifter

Manual permanent magnetic lifter has been used widely to lift and transport steel and iron. Through the application of permanent magnetic material, the volume of magnetic lifter become smaller. The application of this product completely eliminate the consumption of electricity, therefore it will not be plagued by power cuts.

Product Details:

1. Item: Manual permanent magnetic lifter
2. Type: Permanent
3. Power source: Magnet
4. Capacity: 400kg-5000kg
5. Braking load is 4 times of working load limited
6. Usage: Lifting
7. Size: 94mm*92mm*200mm-231mm*215mm*600mm
8. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects
2. When lifting, the working current should achieve the rated value to start lifting.
3. When land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.
4. Carefully check each part, the damaged parts should be replaced timely .
5. In the process of lifting, not allowed to oprate in the head of equipment or personnel

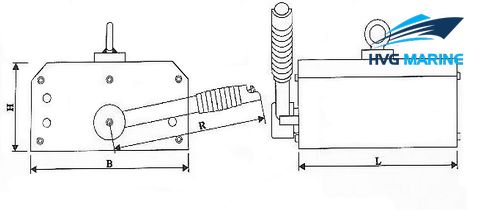

Sketch of the manual permanent magnetic lifter

Technical specification:

Specification:

Capacity(kg)	B.L(kg)	N.W.(kg)	B(mm)	H(mm)	L(mm)	R(mm)
400	1200	9.2	94	92	200	190
600	1800	18.2	112	115	260	220
1000	3000	33	143	136	310	245
2000	6000	69.4	164	166	400	335
3000	7500	88	173	196	490	335
5000	12500	197	231	215	600	550
