HVG RIGGING-LIFTING 0161: Electro Permanent Magnetic Lifter

Electro permanent magnetic lifterhas advantages of small volume, big suction, simple operatio, low cost, no maintenance, energy saving, long service life. It has a unique swich handle, which can be operated to absorb or discharge objects.No need of electricity and no dangerous from sudden cut off of elecctricity.

Product Details:

1. Item: Electro permanent magnetic lifter
2. Type: Permanent
3. Power source: Magnet
4. Capacity: 100kg-2000kg
5. Braking load is 4 times of working load limited
6. Usage: Lifting
7. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects
2. When lifting, the working current should achieve the rated value to start lifting.
3. When land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.
4 .Carefully check each part, the damaged parts should be replaced timely .
5. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

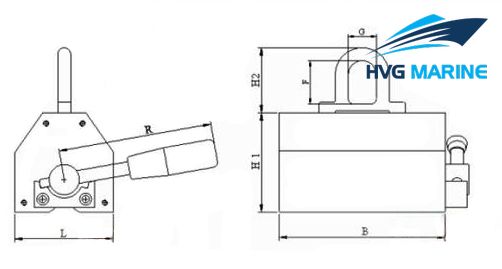

Sketch of the electro permanent magnetic lifter

Technical specification:

Specification:

Capacity(kg)	Weight(kg)	B(mm)	F(mm)	G(mm)	H1(mm)	H2(mm)	L(mm)	R(mm)
100	3	92	35	28	67	54	64	148
300	7.5	162	47	40	91	70	92	180
600	23	233	64	50	118	95	122	185
1000	55	268	64	50	164	95	179	210
2000	125	378	80	60	212	120	234	365
