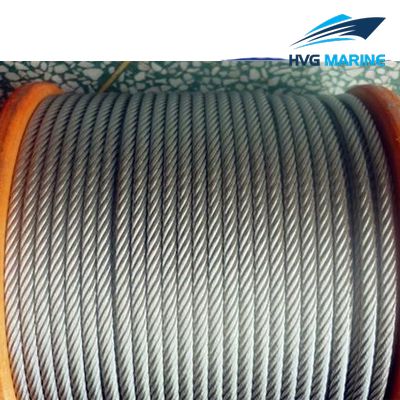

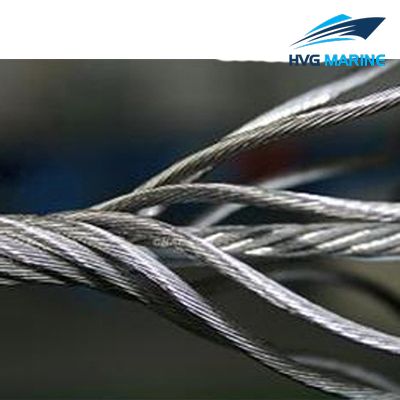

HVG RIGGING-LIFTING 0146: Aircraft Steel Wire Rope 6*19

Aircraft steel wire rope is mainly used to control the aircraft rudder and aileron, engines, landing gear, compass and so on. It is also required a high corrosion resistance to stand dew and polution. Besides, they can serve in many circumstances. And Special specification can be made according to customers requirement.

Product Details:

1. Item: Aircraft steel wire rope 6*19
2. Construction: 6*19
3. Type: steel wire rope
4. Finish: Galvanized or ungalvanized
5. Material: Steel
6. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed
2. Never overload, and never shock load a wire rope
3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts
4. It is important to clean and replace lubricant to the wire rope periodically.

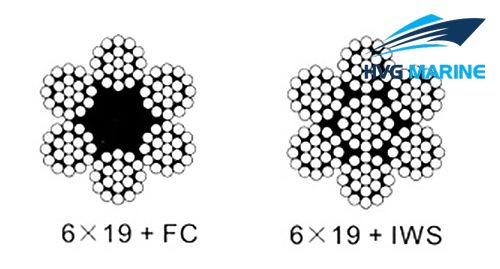

Sketch of the aircraft steel wire rope 6*19

Technical specification:

Specification:

Diameter		Nominal Tensile Strength of Wire	Minimum Breaking Load of Fiber Core Rope	Min.Breaking Load of Steel Core Rope	Approx Weight of Steel Core	Approx Weight of Fiber Core
Rope	Wire	Nominal Tensile Strength of Wire	Minimum Breaking Load of Fiber Core Rope	Min.Breaking Load of Steel Core Rope	Approx Weight of Steel Core	Approx Weight of Fiber Core
3	0.2	2062	6.3	7.3	4.2	3.8
3.3	0.22	1770	6.5	7.59	5.74	4.5
3.6	0.24	1770	7.8	9.1	6	5.4
4.2	0.28	1770	10.6	12.3	8.2	7.4
4.8	0.31	1770	1.9	16	10.71	9
5.1	0.34	1770	15.6	18.1	12.1	10.9
6	0.4	1670	19	23.7	16.7	15.1
6.3	0.42	1670	22.2	26.1	18.41	16.65
7.5	0.5	1670	32.9	37.1	26	23.59
8.25	0.55	1670	38.4	44.9	32	28.55
9	0.6	1670	45.7	53.4	37.6	33.98
9.75	0.65	1670	50.3	62.6	44.1	39.88
