HVG RIGGING-LIFTING 0127

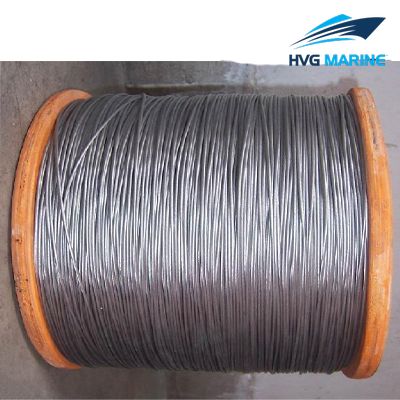

HVG RIGGING-LIFTING 0127: 316 Stainless Steel Wire Rope

316 stainless steel wire rope has better corrosion reaiatance, especially in high temperature environment. It has advantages of high strength, light weight, smooth work and not easy to suddenly broken.

Product Details:

1. Item: 316 stainless steel wire rope
2. Type: Stainless steel
3. Finish: Bright
4. Material of rope: Stainless steel
5. Nominal tensile Strength: 1570 MPa
6. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed
2. Never overload, and never shock load a wire rope
3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts
4. It is important to clean and replace lubricant to the wire rope periodically.

Specification of stainless steel wire rope: 6*19, 7*19, 1*7, 1*19, 6*7, 7*7, 6*37, 7*37

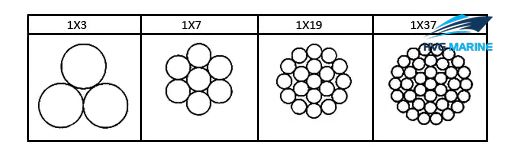

Structure of 316 Stainless Steel Wire Rope

Technical specification:

1*19 Round Strand Wire Rope：

Diameter(mm)	Min.Breaking Load(kn)		Approx.Weight
Diameter(mm)	1570Mpa	1770Mpa	kg/100m
0.45	0.167	0.188	0.102
0.5	0.206	0.232	0.125
0.6	0.295	0.334	0.181
0.8	0.525	0.594	0.32
1	0.825	0.93	0.5
1.5	1.86	2.09	1.13
2	3.3	3.72	2
2.5	5.15	5.81	3.13
3	7.42	8.37	1.5
4	13.2	14.9	8
5	20.6	23.25	12.5
6	29.7	33.5	18
8	52.8	59.5	32
10	82.5	93	50
12	119	134	72
14	162	183	98
16	211	238	128
18	267	301	162
20	330	372	200
22	399	450	242
24	475	536	288
