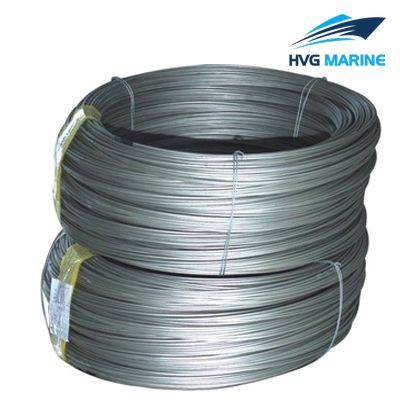

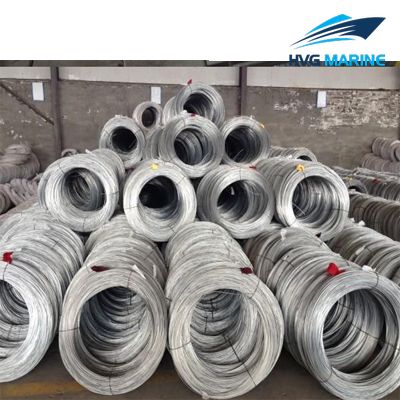

    HVG RIGGING-LIFTING 0125: High Tensile Carbon Spring Steel Wire

    High tensile carbon spring steel wire is characterized low plasticity, strong flexibility, powerful anti-stress. It is mainly used for spring Simmons bed, vehicles and various cushions, machine manufacturing, electric tools, electrical equipment and so on.

    Product Details:

    • 1. Item: High tensile carbon spring steel wire
    • 2. Type: Steel wire
    • 3. Wire diamater: 0.35mm-6mm
    • 4. Finish: nickel plating, zinc plating, etc.
    • 5. Heat treatment: Quenched, tempered
    • 6. Material: Carbon steel
    • 7. Application: Hardware, plastic parts, automobile

    Technical specification:

    • Specification:

    Diameter

    Tensile strength (Mpa)

    mm

    B Grade

    C Grade

    D Grade

    0.35

    1960-2350

    2250-2650

    2600-2990

    0.4

    1910-2300

    2250-2650

    2600-2990

    0.5

    1860-2260

    2200-2600

    2550-2940

    0.55

    1810-2210

    2150-2550

    2500-2890

    0.6

    1760-2160

    2110-2500

    2450-2840

    0.65

    1760-2160

    2110-2500

    2450-2840

    0.7

    1710-2110

    2060-2450

    2450-2840

    0.8

    1710-2060

    2010-2400

    2400-2840

    0.9

    1710-2060

    2010-2350

    2350-2750

    1

    1660-2010

    1960-2300

    2300-2690

    1.2

    1620-1960

    1910-2250

    2250-2550

    1.4

    1620-1910

    1860-2210

    2150-2450

    1.6

    1570-1860

    1810-2160

    2110-2400

    1.8

    1520-1810

    1760-2110

    2010-2300

    2

    1470-1760

    1710-2010

    1910-2200

    2.2

    1420-1710

    1660-1960

    1810-2110

    2.5

    1420-1710

    1660-1960

    1760-2060

    2.8

    1370-1670

    1620-1910

    1710-2010

    3

    1370-1670

    1570-1860

    1710-1960

    3.2

    1320-1620

    1570-1810

    1660-1910

    3.5

    1320-1620

    1570-1810

    1660-1910

    4

    1320-1620

    1520-1760

    1620-1860

    4.5

    1320-1570

    1520-1760

    1620-1860

    5

    1320-1570

    1470-1710

    1570-1810

    5.5

    1270-1520

    1470-1710

    1570-1810

    6

    1220-1470

    1420-1660

    1520-1760
