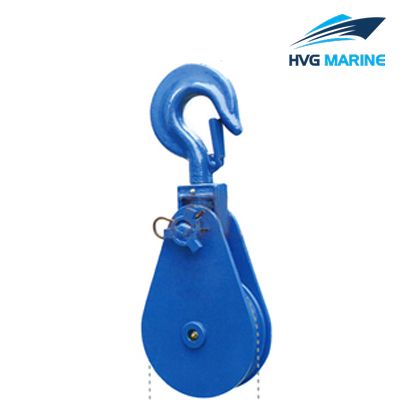

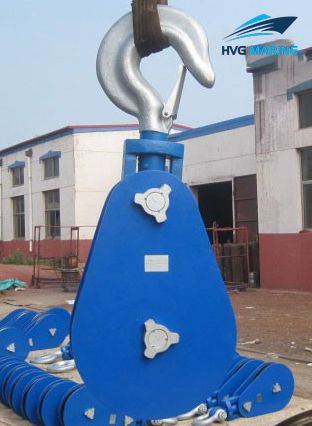

HVG RIGGING-LIFTING 0108: Heavy Type Snatch Block with Hook

Heavy type snatch block with hook is made by high tensile steel. The working load limited is from 2 ton to 50 ton. The block is configurated with carbon steel pulley and grease ripple that can prolong the service life and make it convient to operate and maintenance.

Product Details:

1. Item: Heavy type snatch block with hook
2. Type: Snatch block
3. Material: Steel
4. Technology: Drop forged
5. Surface: Power coated or galvanized
6. WLL: 2T-50T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 70mm-240mm
10. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

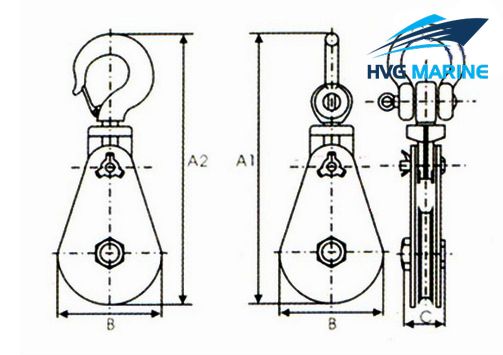

S.W.L(T)	Sheave Dia.(mm)	Wire Rope Dia.(mm)	A1(mm)	B(mm)	C(mm)
2	75	7/9	292	82	70
4	115	10/12	358	120	70
4	150	16/18	412	160	70
8	150	20/22	498	160	93
8	200	20/22	549	210	93
15	200	22/24	672	230	102
10	250	24/26	695	260	115
12	250	24/26	701	260	115
12	300	24/26	797	310	133
15	300	26/28	800	310	133
22	355	28/32	960	365	140
22	400	28/32	1027	415	140
30	400	32/35	1085	415	155
30	500	32/35	1177	514	162
50	600	46/50	1445	625	240
