HVG RIGGING-LIFTING 0107

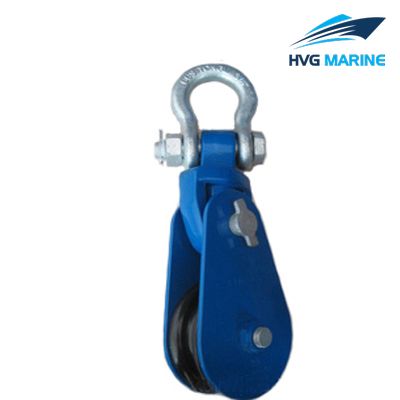

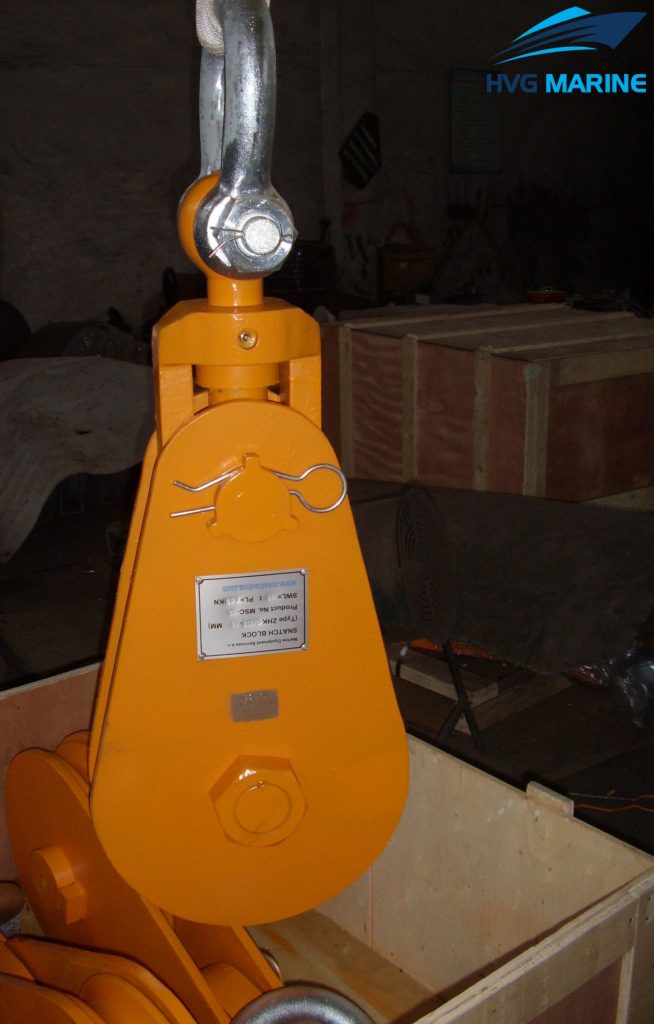

HVG RIGGING-LIFTING 0107: Heavy Type Snatch Block with Shackle

Heavy type snatch block with shackle is a kind of common used lifting equipment. It is configurated with carbon steel pulley and grease ripple that can prolong the service life and make it convient to operate and maintenance. The shackle of it adopts better corrosion resistance and long service life product.

Product Details:

1. Item: Heavy type snatch block with shackle
2. Type: Snatch block
3. Material: Steel
4. Technology: Drop forged
5. Surface: Power coated or galvanized
6. WLL: 2T-50T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 70mm-240mm
10. Special specifications and marks can be made according to customers requirement

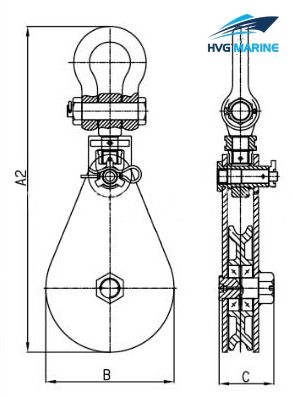

Technical specification:

Specification:

S.W.L(T)	Sheave Dia.(mm)	Wire Rope Dia.(mm)	N.W.(kg)	A1(mm)	B(mm)	C(mm)
2	75	7/9	3.8	286	82	70
4	115	10/12	6.2	345	120	70
4	150	16/18	8.3	399	160	70
8	150	20/22	14.1	475	160	93
8	200	20/22	18.7	528	210	93
15	200	22/24	33	663	230	102
10	250	24/26	34.7	679	260	115
12	250	24/26	34.7	679	260	115
12	300	24/26	54	767	310	133
15	300	26/28	55	788	310	133
22	355	28/32	109	952	365	140
22	400	28/32	118	1019	415	140
30	400	32/35	164	1126	415	155
30	500	32/35	208	1256	514	162
50	600	46/50	418	1525	625	240
