HVG RIGGING-LIFTING 0105: Single Sheave Lifting Snatch Block

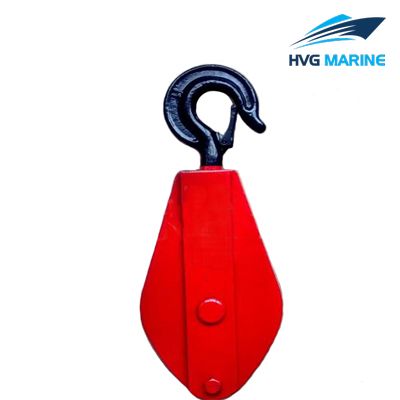

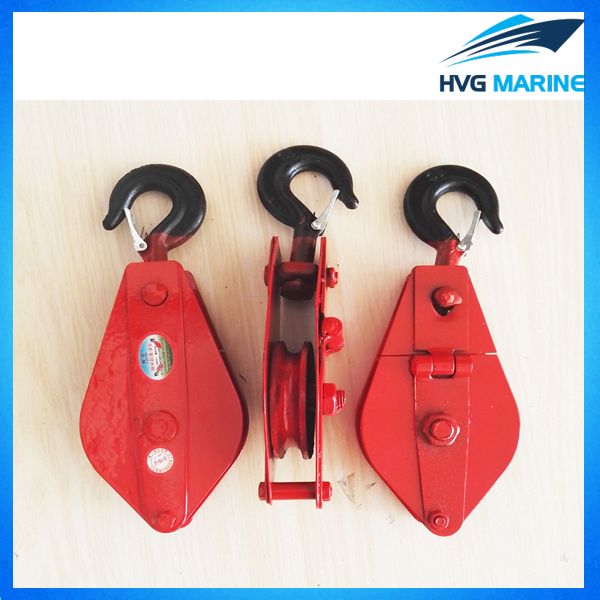

Single sheave lifting snatch block is a wheel on an axle that is designed to support movement and change the direction of cable. It can change the stress direction of the tracted wire rope for many times, and lifting, moving objects.

Product Details:

1. Item: Single sheave lifting snatch block
2. Type: Snatch block
3. Material: Steel
4. Technology: Drop forged
5. Surface: Power coated or galvanized
6. WLL: 1T-32T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 37.5mm-140mm
10. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

Weight	WLL	H	H1	B	L	D	Rope Dia.
kg	T	mm	mm	mm	mm	mm	mm
4.4	1	310	285	116	70.5	37.5	7.7
4.03	1	310	285	116	70.5	37.5	7.7
3.6	1	310	285	116	70.5	37.5	7.7
3.23	1	310	285	116	70.5	37.5	7.7
7.98	2	405	370	152	88	45	11
7.4	2	405	370	152	88	45	11
7.41	2	405	370	152	88	45	11
6.8	2	405	370	152	88	45	11
12.91	3.2	470	440	176	101	50	12.5
12.16	3.2	470	440	176	101	50	12.5
12.22	3.2	470	440	176	101	50	12.5
11.48	3.2	470	440	176	101	50	12.5
23.79	5	570	540	212	117	60	15.5
22.82	5	570	540	212	117	60	15.5
19.85	5	570	540	212	117	60	15.5
18.88	5	570	540	212	117	60	15.5
41	8	730	685	280	141	75	23
38.93	8	730	685	280	141	75	23
36.4	8	730	685	280	141	75	23
34.33	8	730	685	280	141	75	23
62.98	10	810	775	316	159	85	24.5
60.92	10	810	775	316	159	85	24.5
54.1	10	810	775	316	159	85	24.5
52.04	10	810	775	316	159	85	24.5
113.5	16	1010	960	406	185	106	28
107.16	16	1010	960	406	185	106	28
162.2	16	1150	1065	452	193	118	31
152.15	16	1150	1065	452	193	118	31
300	32	1480	1400	580	240	140	35
290	32	1480	1400	580	240	140	35
