HVG RIGGING-LIFTING 0102

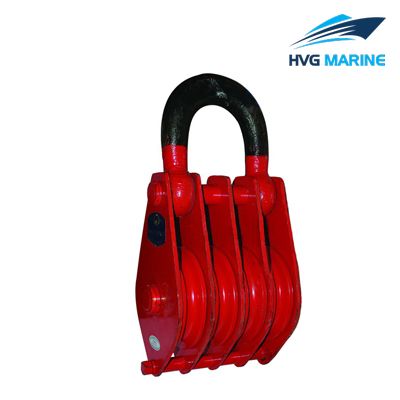

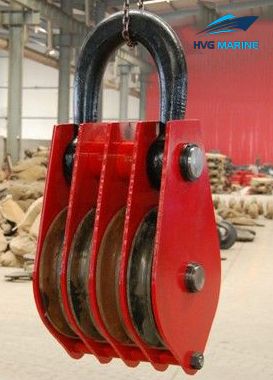

HVG RIGGING-LIFTING 0102: 4 Wheels Pulley Block

Four wheels pulley block is used in a variety of ways to lift loads, apply forces and to transmit power. According to the power source, it can be devided into hand pulley and electric pulley. The block should be inspected according to the extent of frequency and environment of work.

Product Details:

1. Item: Four wheels pulley block
2. Material: Cast iron
3. Technology: Drop forged
4. Surface: Power coated or galvanized
5. WLL: 8T-50T
6. Braking load is 4 times of working load limited
7. Usage: Lifting
8. Size: 20mm-50mm
9. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

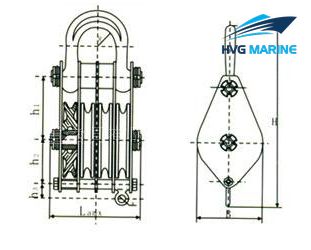

Rated Load(T)	Weight(kg)	Rope Dia.(mm)	H(mm)	B(mm)	L(mm)
8	29	11	470	152	208
10	40.95	12.5	540	176	240
16	40.95	15.5	670	212	292
20	93.59	17	735	236	304
32	196	23	940	316	384
50	347.9	28	1155	406	445
