HVG RIGGING-LIFTING 0095: Marine Wire Rope Snatch Block

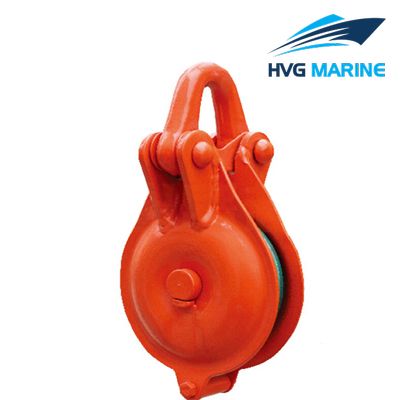

Marine wire rope snatch blcok is a common used lifting equipment in marine.The most outstanding advantage of it is the solid and safety structure. So, to be on the safe side, it is recommemded that the marine wire rope pulley block should be chosen.

Product Details:

1. Item: Marine wire rope pulley block
2. Material: Steel
3. Technology: Drop forged
4. Surface: Power coated or galvanized
5. WLL: 0.5T-5T
6. Braking load is 4 times of working load limited
7. Usage: Lifting
8. Size: 12mm-28mm
9. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

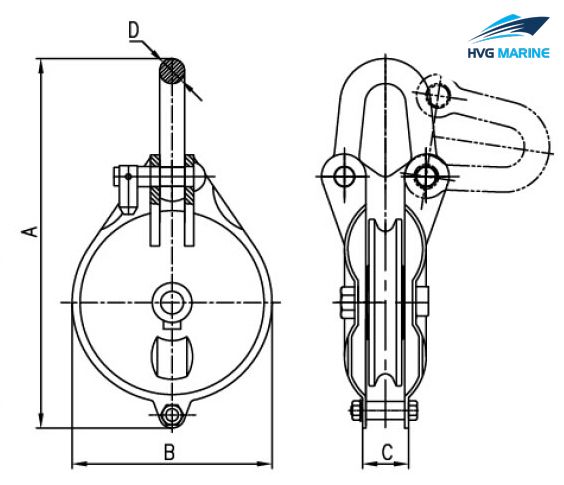

Type	Sheave Dia.(mm)	S.W.L(T)	A(mm)	B(mm)	C(mm)	D(mm)
Single Sheave	75	0.5	178	85	26	12
	100	1	235	121	34	16
	125	1.5	305	145	38	18
	150	2	350	180	41	22
	200	4	425	225	46	28
	250	5	495	275	60	28
Double Sheave	75	0.5	178	85	50	12
	100	1	235	121	61	16
	125	1.5	305	145	73	18
	150	2	350	180	83	22
	200	4	425	225	93	28
	250	5	495	275	115	28
