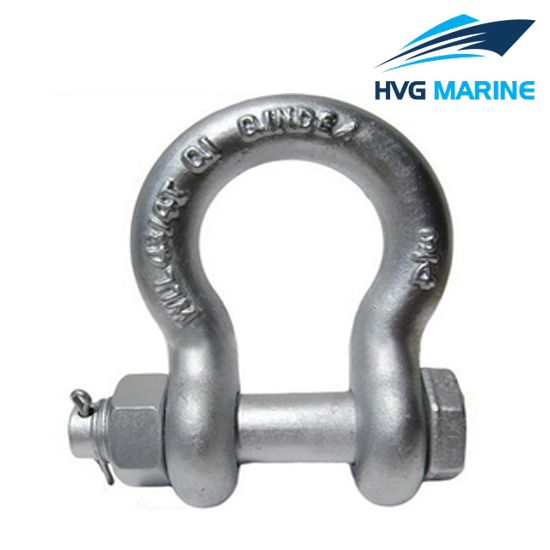

    HVG RIGGING-LIFTING 0093: Drop Forged Bolt Type Bow Shackle

    Galvanized drop forged bolt type shackle also referred to as an anchor shackle. With a larger ‘O’ shape to the loop, it can take loads from many directions without developing as much side load. However, the larger shape to the loop does reduce its overall strength.

    Details:

    1. Model: Galvanized drop forged bolt type shackle
    2. Material: Alloy steel
    3. Usage: Marine hardware, electric power, machinery, metallurgy, building
    4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
    5. Size: From 3/16 inch to 2 2/1 inch
    6. Packing: Gunny bag or carton and pallet / by customer requirments
    7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
    8. Certifications: ISO9001, CE, SGS,etc.
    9. Notes: Special specifications and marks can be made according to customers requirements

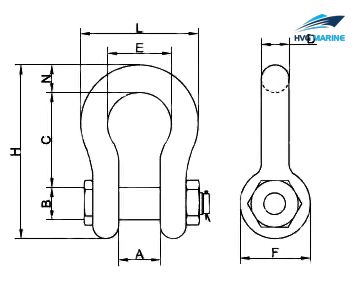

    Technical specification:

    • Specification:

    Nominal size

    Working load limit

    Dimensions(in)

    Weight each(lbs)

    in

    tons

    A

    B

    C

    D

    E

    F

    H

    L

    N

    G2130

    3/16

    1/3

    0.38

    0.25

    0.88

    0.19

    0.6

    0.56

    1.47

    0.98

    0.19

    0.06

    1/4

    1/2

    0.47

    0.31

    1.13

    0.25

    0.78

    0.61

    1.84

    1.28

    0.25

    0.11

    5/16

    3/4

    0.53

    0.38

    1.22

    0.31

    0.84

    0.75

    2.09

    1.47

    0.31

    0.22

    3/8

    1

    0.66

    0.44

    1.44

    0.38

    1.03

    0.91

    2.49

    1.78

    0.38

    0.33

    7/16

    1-1/2

    0.75

    0.5

    1.69

    0.44

    1.16

    1.06

    2.91

    2.03

    0.44

    0.49

    1/2

    2

    0.81

    0.64

    1.88

    0.5

    1.31

    1.19

    3.28

    2.31

    0.5

    0.79

    5/8

    3-1/4

    1.06

    0.77

    2.38

    0.63

    1.69

    1.5

    4.19

    2.94

    0.69

    1.68

    3/4

    4-3/4

    1.25

    0.89

    2.81

    0.75

    2

    1.81

    4.97

    3.5

    0.81

    2.72

    7/8

    6-1/2

    1.44

    1.02

    3.31

    0.88

    2.28

    2.09

    5.83

    4.03

    0.97

    3.95

    1

    8-1/2

    1.69

    1.15

    3.75

    1

    2.69

    2.38

    6.56

    4.69

    1.06

    5.66

    1-1/8

    9-1/2

    1.81

    1.25

    4.25

    1.13

    2.91

    2.69

    7.47

    5.16

    1.25

    8.27

    1-1/4

    12

    2.03

    1.4

    4.69

    1.29

    3.25

    3

    8.25

    5.75

    1.38

    11.71

    1-3/8

    13-1/2

    2.25

    1.53

    5.25

    1.42

    3.63

    3.31

    9.16

    6.38

    1.5

    15.83

    1-1/2

    17

    2.38

    1.66

    5.75

    1.53

    3.88

    3.63

    10

    6.88

    1.62

    19

    1-3/4

    25

    2.88

    2.04

    7

    1.84

    5

    4.19

    12.34

    8.8

    2.25

    33.91

    2

    35

    3.25

    2.3

    7.75

    2.08

    5.75

    4.81

    13.68

    10.15

    2.4

    52.25

    2-1/2

    55

    4.13

    2.8

    10.5

    2.71

    7.25

    5.69

    17.9

    12.75

    3.13

    98.25
