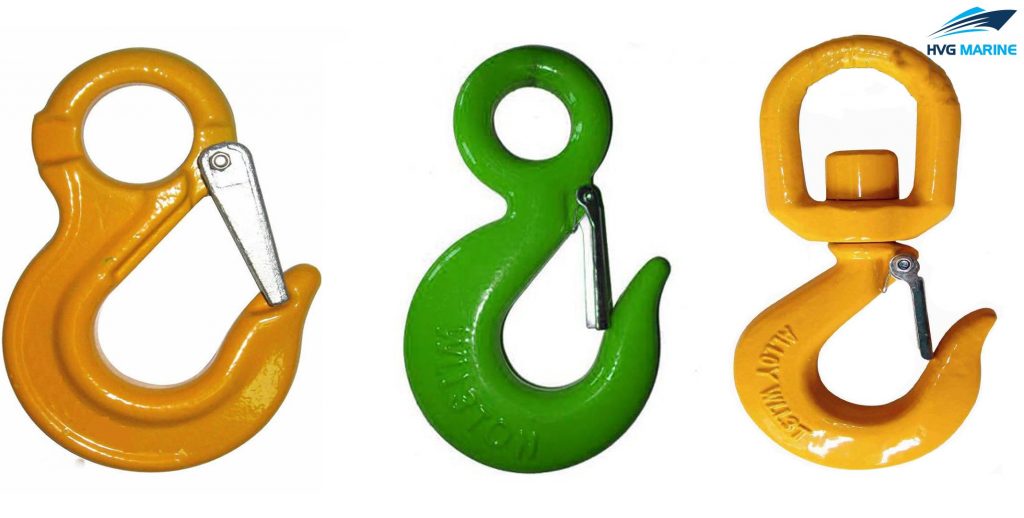

HVG RIGGING-LIFTING 0035: Lifting Hook

We are a excellent supplier of lifting hook, and have been in this field over 16 years. To meet the increasing demands of clients, we have manufacture a variety of hooks.

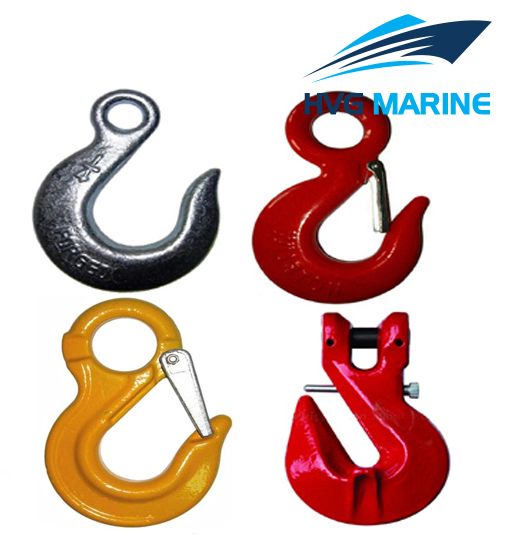

A lifting hook is a device for grabbing and lifting loads. It is usually equipped with a safety latch to prevent the disengagement of the lifting wire rope sling, chain or rope to which the load is attached.

European, North America, South Asia, Middle East and Africa are our leading markets, shipyard and Storage Company. Our products have been exported directly to the many shipyards. We promise to supply lifting hooks with high quality, reliable performance, competitive price, short delivery time and good after sales sercive to our clients.

Pay attention:

1. The surface of hook should be smooth. It is not allowed to have defects such as cracks and sharpe edges.
2. Please check the hook before use to ensure it without serious wear, deformation and fatigue crack.
3. The use of hook shall not exceed the prescribed safety working load.
4. The hook should be scrapped when there is obvious permanent deformation or the shaft pin can not rotate freely.

Technical specification:

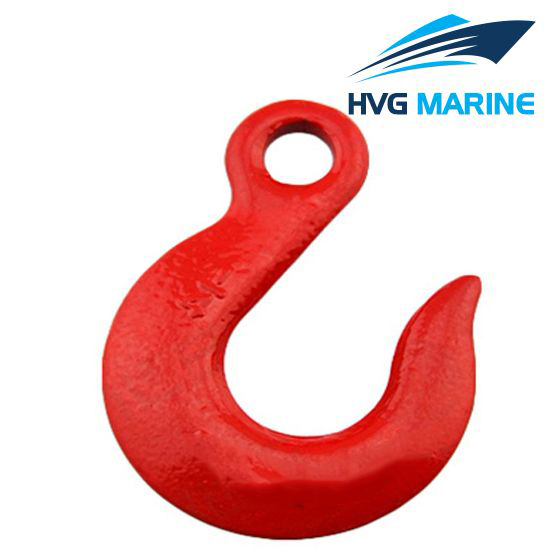

Specification Drop Forged Carbon Steel Eye Grab Hook H324

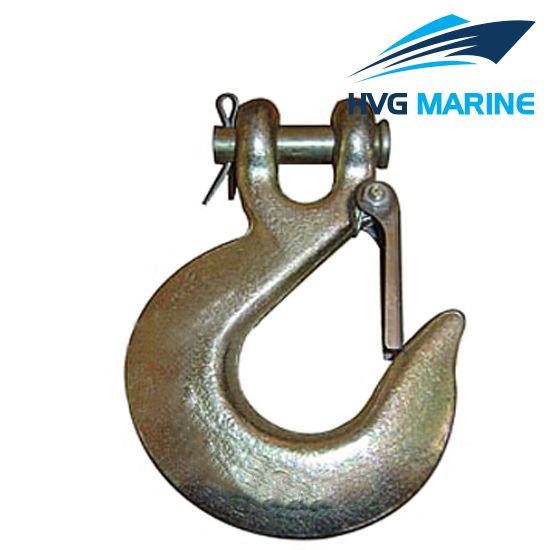

Specification Clevis Slip Hook with Latch

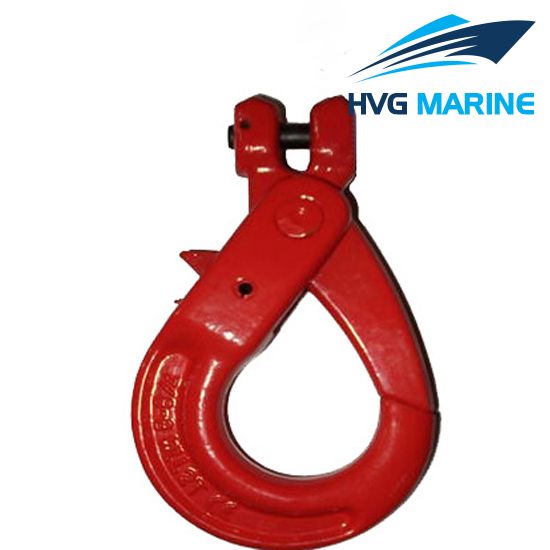

Specification G80 Clevis Self-locking Hook

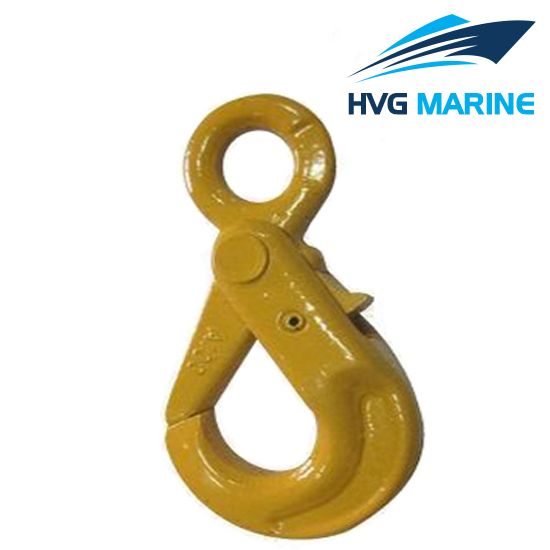

Specification G80 Eye Self-locking Hook

Size(in)	W.L.L.(lbs)	B(in)	E(in)	R(in)	Weight(lbs)
1/4′	1950	0.5	0.94	2.56	0.4
5/16′	2875	0.63	1.06	2.95	0.7
3/8′	4000	0.72	1.31	3.36	1
7/16′	5000	0.81	1.56	3.88	1.6
1/2′	6500	0.94	1.69	4.28	2.4
5/8′	9250	1.13	2	5.22	4
3/4′	12500	1.38	2.13	5.8	6.5

Chain Size	W.L.L	Dimension(in)					Weight
in	lbs	B	E	P	R	T	lbs
1/4′	2750	0.44	0.79	0.38	2.56	0.79	0.52
5/16′	4300	0.5	0.93	0.44	2.87	0.79	0.77
3/8′	5250	0.59	1.14	0.47	3.25	1.02	1.23
7/16′	7000	0.66	1.18	0.56	3.7	1.06	2.1
1/2′	9000	0.75	1.42	0.63	4	1.38	2.85
5/8′	13500	0.91	1.65	0.75	4.94	1.69	5.18
3/4′	19250	0.31	1.81	1	6.09	1.81	10.45
1′	26500	0.38	1.98	1.14	7.4	2.5	13.65

Chain Size	WLL	Dimention(mm)					Weight
mm	ton	B	E	H	R	Φ	kg
6	1.12	8.5	29	19.5	95.5	34	0.5
7-8	2	9.5	34	24	121	46	0.8
10	3.15	12	44	28.5	146	56	1.5
13	5.3	15	52	40	182	69	2.8
16	8	18	60	50.5	218	86	5.6
20	12.5	25	83	55	240	100	7.5
22	15	25.5	88	67	276.5	98	11.5
26	21.2	30	95.5	75	310.5	110	18.5
32	31.5	36	160	97	411.5	166	49.1

Chain Size	WLL	B.L	Weight	Φ1	Φ2	D	E	H	R
mm	ton	ton	kg	mm	mm	mm	mm	mm	mm
6	1.12	4.48	0.5	22	34	10	28	19.5	110.5
7-8	2	8	0.8	25	46	12	34	24	136
10	3.15	12.6	1.55	32	56	15	44	28.5	171
13	5.3	21.2	3.2	40.5	69	19.5	52	40	208.5
16	8	32	5.74	56	86	22	60	50.5	257.5
20	12.5	50	8.5	64.5	100	27	81	55	275
22	15	60	13	70	98	30	82	67	320
26	21.2	84.8	18	80	110	34	110	75	363
32	31.5	126	44.5	105	166	45	168	97	472
