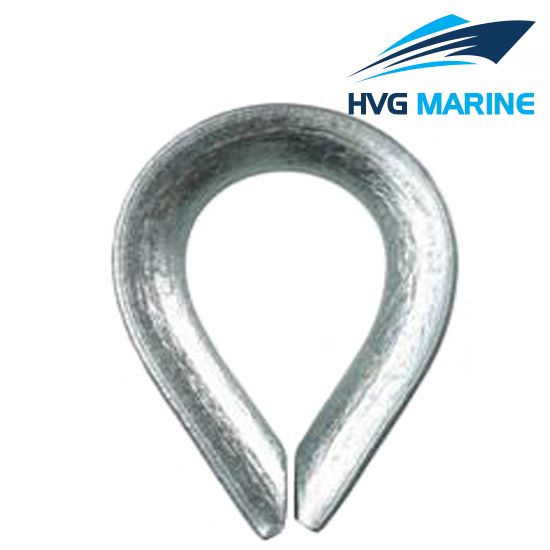

HVG RIGGING-LIFTING 0034: Wire Rope Thimble

Our company specialize in liftings with good quality, reliable performance, competitive price, short delivery time and good after sales sercive.

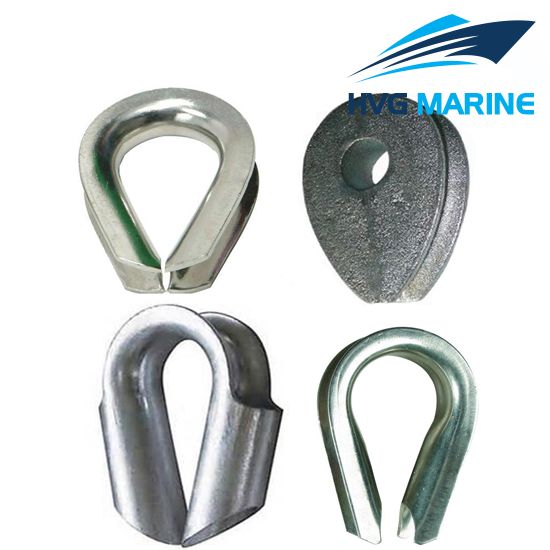

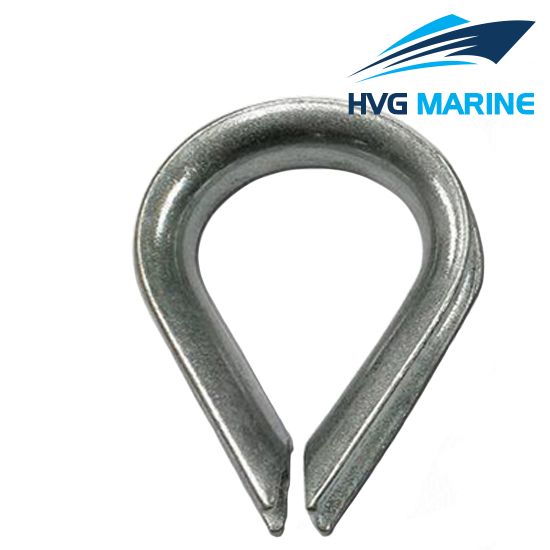

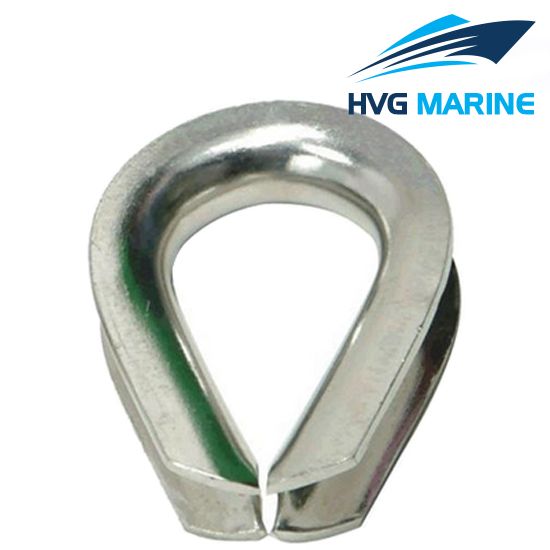

Wire rope thimble, also called capel, is a kind of hoisting rigging. The materials are A3 steel or high quality 15 and 35 carbon steel. The surface of it is bright and smooth with hot dip galvanized, and without leakage, bubbles, crakes or other defects. European, North America, South Asia, Middle East and Africa are our leading markets, shipyard and Storage Company. Our products have been exported directly to the many shipyards.And we are expecting to your visit and negotiation, we will be your reliable partner.

Pay attention:

1. The surface of wire rope thimble should be smooth. It is not allowed to have defects such as cracks and sharpe edges.
2. The safety working load of it shall not be less than 32% of the mininum breaking load of wire rope.
3. Please check it before use to ensure it without serious wear, deformation and fatigue crack.
4. The use of thinble shall not exceed the prescribed safety working load.
5. The thimble should be scrapped when there is obvious permanent deformation

Technical specification:

Specification:

Rope Dia.(in)	Weight(kg)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	K(mm)	Q(mm)
5/16′	0.08	22.2	38	12.7	33.4	52	7.9	4	4	30.1
3/8′	0.1	25.4	47.6	14.3	38	64	10.3	6.3	4.8	35
7/16′	0.11	28.6	52	17.5	41.3	73	12.7	7.9	4.8	38
1/2′	0.17	31.7	53.8	20.6	44.5	79.4	14.3	7.9	5.5	42.9
9/16′	0.19	31.7	58.8	20.6	44.5	79.4	14.6	7.9	5.5	42.9
5/8′	0.3	41.3	74.5	22.2	58.8	95.8	15.9	8.7	7.9	56
3/4′	0.6	50.8	92	28.6	73	124	20.6	11.1	9.5	69.8
7/8′	0.69	56	102	31.7	82.5	133	22.2	12.7	9.5	76.2
1′	1.15	69.8	119	35	108	162	27	14.3	10.3	90.5
1 1/8′	1.4	76.2	133	38	112	178	28.6	15.9	12.7	102
1 1/4′	1.5	95	152	41.3	133	197	33.4	15.9	12.7	121
1 3/8′	2.5	105	175	47.6	152	228	38	19	15.9	137
1 1/2′	3.75	114	197	52	165	254	41.3	23.8	17.5	149
1 5/8′	3.91	114	197	58.6	165	254	42.9	23.8	17.5	149
1 3/4′	6.67	127	228	56	178	286	50.8	25.4	25.4	178
1 7/8′	8.42	133	248	66.6	190	317	60.4	28.6	28.6	190
