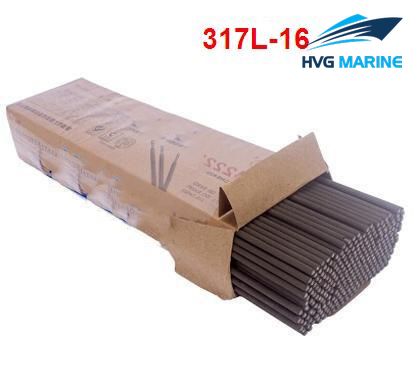

    HVG OTHER INDUSTRIAL EQUIPMENT 0074: E317L-16 Stainless Steel Electrode

    GB E317L-16 AWS E317L-16

    Introduction: E317L-16 is a kind of ultra-low-carbon Cr18Ni12Mo3 stainless steel electrode with lime-titania type coating. The carbon content of the deposited metal is lower than or equal to 0.04%. It has excellent heat-resistance, corrosion-resistance, crack-resistance and blowhole-resistance. Its corrosion-resistance is especially more excellent than that of A022. It has excellent welding performance. The coating has red-resistance and high strength. AC/DC.

    Uses: Used for welding ultra-low-carbon 00Cr18Ni12Mo3 stainless steel, and also used for welding Cr stainless steel which does not need heat treatment after welding, composite steel and dissimilar steel.

    Technical specification:

    • Technical specification

    Chemical Composition of Deposited Metal (%)

    Chemical Composition
    C
    Mn
    Si
    S
    P
    Cu
    Ni
    Mo
    Cr
    Guarantee Value
    ≤0.04
    0.5~2.5
    ≤0.90
    ≤0.030
    ≤0.040
    ≤0.75
    12.0~14.0
    3.00~4.00
    18.0~21.0

    Mechanical Properties of Deposited Metal

    Test Item
    Rm(MPa)
    A(%)
    Guarantee Value
    ≥520
    ≥25

    Reference Current (AC, DC+)

    Electrode Diameter(mm)
    φ2.0
    φ2.5
    φ3.2
    φ4.0
    φ5.0
    Welding Current (A)
    40~80
    50~100
    70~130
    100~160
    140~200
