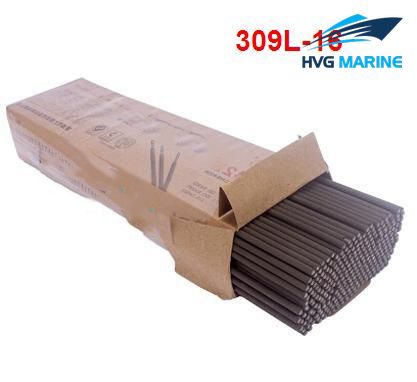

    HVG OTHER INDUSTRIAL EQUIPMENT 0073: E309L-16 Stainless Steel Electrode

    GB E309L-16 AWS E309L-16

    Introduction: E309L-16 is a kind of ultra-low-carbon Cr23Ni13 stainless steel electrode with lime-titania type coating. AC/DC. Due to the low carbon content, it can still resist intercrystalline corrosion led to by carbide precipitation without any stabilizers like Nb, Ti, etc.

    Uses: Used for stainless steel structures of the same types, composite steel, dissimilar steel, etc. in the production of equipment of synthetic fiber, petrochemical industry, etc., and also used for surfacing welding on nuclear reactors and transition layers of pressure vessel inner surfaces and welding inner parts of synthesis towers

    Technical specification:

    • Technical specification

    Chemical Composition of Deposited Metal (%)

    Chemical Composition
    C
    Mn
    Si
    S
    P
    Ni
    Mo
    Cr
    Guarantee Value
    ≤0.04
    0.5~2.5
    ≤0.90
    ≤0.030
    ≤0.040
    12.0~14.0
    ≤0.75
    22.0~25.0

    Mechanical Properties of Deposited Metal

    Test Item
    Rm(MPa)
    A(%)
    Guarantee Value
    ≥520
    ≥25

    Reference Current (AC, DC+)

    Electrode Diameter(mm)
    φ2.0
    φ2.5
    φ3.2
    φ4.0
    φ5.0
    Welding Current (A)
    40~80
    50~100
    70~130
    100~160
    140~200
