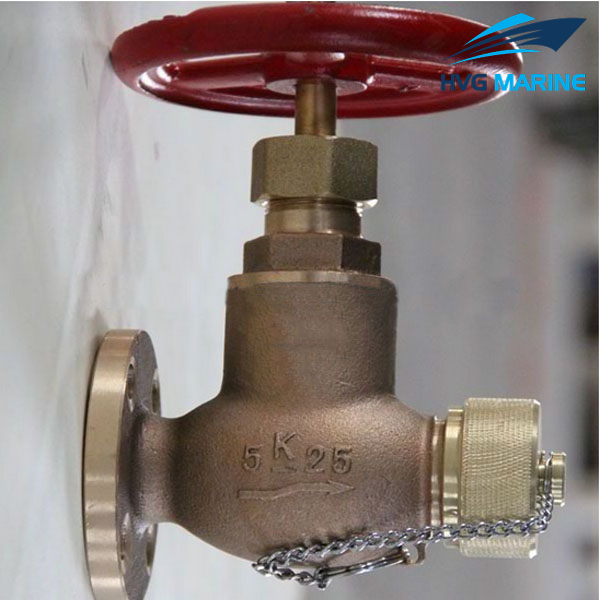

HVG MARINE VALVE 0244: Marine Cast Bronze Globe Hose Valves JIS F7334A 5k/10k
1. Test standard: JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:5k/10k.
5.DN:
6.Main material:
7.Application:Water piping.
8.Function:Such valves are used for fire control.

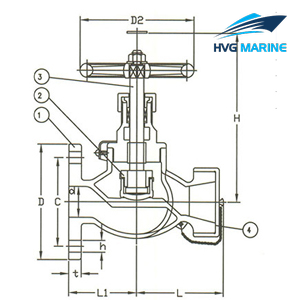

Specification of Marine Cast Bronze Globe Hose Valves JIS F7334A 5k/10k:
Marine Cast Bronze Globe Hose Valves JIS F7334A 5k:
|
DN/mm |
Flange diam./D(mm) |
Flange pitch/C(mm) |
Flange hole/n*d(mm) |
Weight/kg |
|
15 |
80 |
60 |
4xΦ12 |
2.51 |
|
25 |
95 |
75 |
4xΦ12 |
3.55 |
|
40 |
120 |
95 |
4xΦ15 |
6.26 |
|
50 |
130 |
105 |
4xΦ15 |
12.90 |
Marine Cast Bronze Globe Hose Valves JIS F7334A 10k:
|
DN/mm |
Flange diam./D(mm) |
Flange pitch/C(mm) |
Flange hole/n*d(mm) |
Weight/kg |
|
15 |
95 |
70 |
4xΦ15 |
2.76 |
|
25 |
125 |
90 |
4xΦ19 |
4.15 |
|
40 |
140 |
105 |
4xΦ19 |
8.43 |
|
50 |
155 |
120 |
4xΦ19 |
15.40 |
|
65 |
175 |
140 |
4xΦ19 |
27.80 |
