    HVG MARINE VALVE 0243

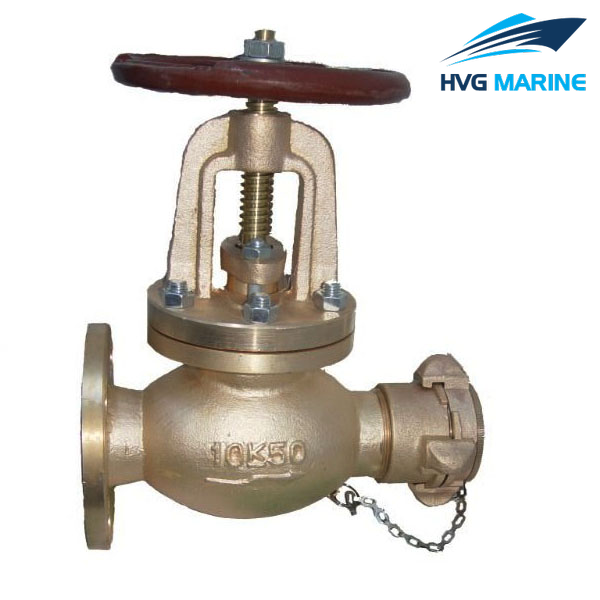

    HVG MARINE VALVE 0243: Marine Bronze Globe Hose Valve JIS F7334A 5K/10K

    1. Marine Bronze Globe Hose Valve JIS F7334 5K/10K (DN40-DN65) , 5K, 10K available.

    2. Manufactured according to JISF7400 standards. The valve material can be chosen by customers.

    3. Capability:

    Nominal Pressure(Mpa) Test Pressure(Mpa)
    Seal pressure Intensity pressure Water pressure test
    0.49 0.75 1.03 0.69
    0.98 1.5 2.06 1.37

    4. Materials of major parts:

    Part name Material
    Name Mark
    Body.Bonnet Tin-bronze ZQSn10-21
    Disc.Seat Albronze QAL9-21
    Packing PTFE SFT-2



    Technical specification:

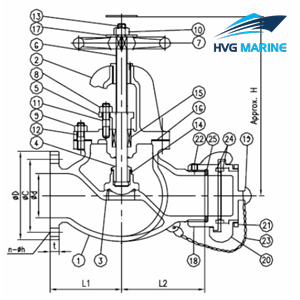

    • Main data for joining(mm):
    Code Size L2 L1 Flange diam. (D) Pitch (C) Hole (nxd) t H1 Weight
    (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
    751711 5K40 80 80 120 95 4XD15 12 190 6.26
    751712 10K40 85 90 140 105 4XD19 16 190 8.43
    751716 5K50 105 105 130 105 4XD15 14 225 12.90
    751717 10K50 110 110 155 120 4XD19 16 270 15.40
    751718 10K65 140 135 175 140 4XD19 18 295 27.80
