MARINE VALVE 0184
    • MARINE VALVE 0184
    HVG MARINE VALVE 0184

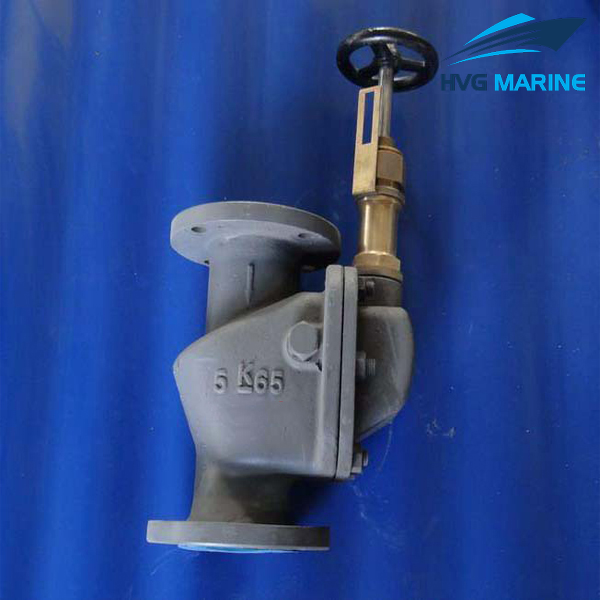

    HVG MARINE VALVE 0184: Marine Cast Steel Vertical Storm Valve JIS F3060 5k

    1.Test standard:JISf7400.

    2.End standard:JISB2210.

    3.End type:flange.

    4.PN:5k.

    5.DN:50mm-200mm.

    6.main material:

        • Body/Bonnet:ZG230-450;
        • Seat:SS410*BC6;
        • Stem:SS410/BC6;
        • Disc:SS410/BC6.

    7.Application:Seawater and freshwater piping.

    8.Function:Such valves are used for discharging seawater or freshwater and preventing refluence.

    Drawing of Marine Cast Steel Vertical Storm Valve JIS F3060 5k;

    Technical specification:

    • Specification of Marine Cast Steel Vertical Storm Valve JIS F3060 5k;
    IMPA Type DN Face to face/L(mm) flange diam./D(mm) flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
    754241 F3060 5k

    vertical

    		 50 210 130 105 4XΦ15 11.50
    754242 65 240 155 130 4XΦ15 16.50
    754243 80 260 180 145 4XΦ19 21.60
    754244 100 280 200 165 8XΦ19 29.60
    754245 125 330 235 200 8XΦ19 43.60
    754246 150 360 265 230 8XΦ19 51.60
    754247 200 450 320 280 8XΦ23 80.10
