    HVG MARINE VALVE 0183

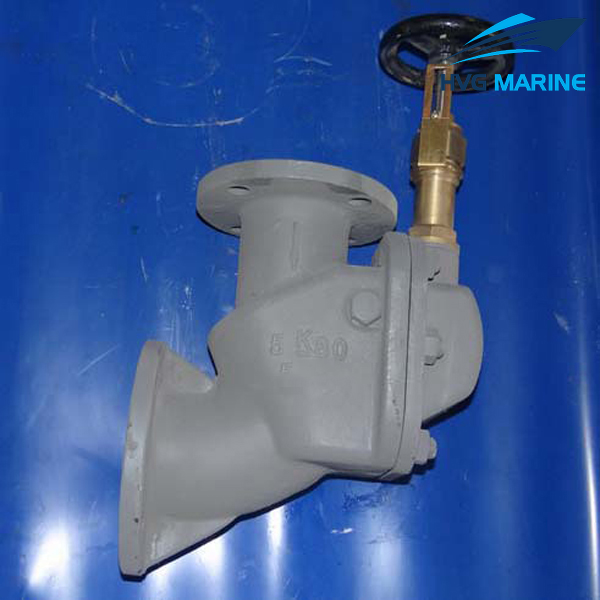

    HVG MARINE VALVE 0183: Marine Cast Steel Angle Storm Valve JIS F3060R 5k

    1.Test standard:JISF7400.

    2.End standard:JISB2210.

    3.End type:Flange.

    4.PN:5K.

    5.DN:50mm-200mm.

    6.Main material:

    • Body/Bonnet:ZG230-450;
    • Seat:SS410/BC6;
    • Stem:SS410/BC6;
    • Disc:SS410/BC6.

    7.Application:Seawater and freshwater piping.

    8.Function:Such valves are used for discharging seawater or freshwater and preventing reflluence .

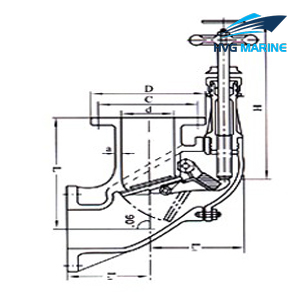

    Drawing of Marine Cast Steel Angle Storm Valve JIS F3060R 5k;

    Technical specification:

    • Specification of Marine Cast Steel Angle Storm Valve JIS F3060R 5k:
    IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
    754251 F3060R

    5k

    Angle

    		 50 170 130 105 4XΦ15 13.90
    754252 65 200 140 130 4XΦ15 20.10
    754253 80 220 155 145 4XΦ19 24.10
    754254 100 250 170 165 8XΦ19 35.20
    754255 125 270 235 200 8XΦ19 52.70
    754256 150 310 265 230 8XΦ19 63.20
    754257 200 400 320 280 8XΦ23 83.70
