    HVG MARINE VALVE 0177

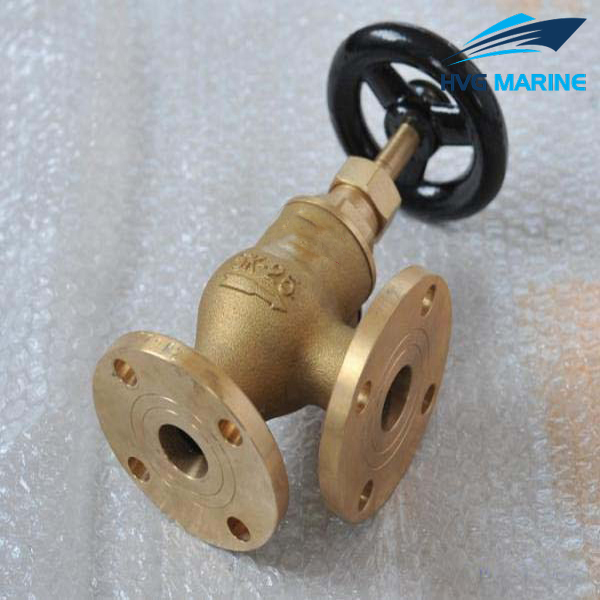

    HVG MARINE VALVE 0177: Marine Cast Bronze Angle Globe Valve JIS F7302 5k

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type：Flange.

    4.PN:5k.

    5.DN:15mm-65mm.

    6.Main material:

    • Body/Bonnet:BC6/FCD450;
    • Seat:BC6/FCD450;
    • Stem:H62/SS410;
    • Disc:BC6/FCD450.

    7.Application:Oil piping and water piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate

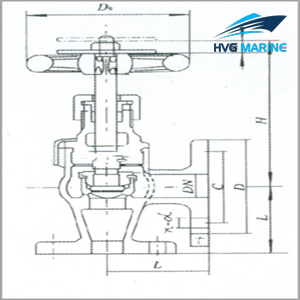

    Drawing of Marine Cast Bronze Angle Globe Valve JIS F7302 5k:

    Technical specification:

    • Specification of Marine Cast Bronze Angle Globe Valve JIS F7302 5k:
    IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
    750131 F7302

    5k

    Globe

    		 15 55 80 60 4xΦ12 1.98
    750132 20 60 85 65 4xΦ12 2.73
    750133 25 65 95 75 4xΦ12 3.44
    750134 32 80 115 90 4xΦ15 4.77
    750135 40 85 120 95 4xΦ15 5.99
    750136 50 100 130 105 4xΦ15 10.10
    750137 65 115 155 130 4xΦ15 15.60
