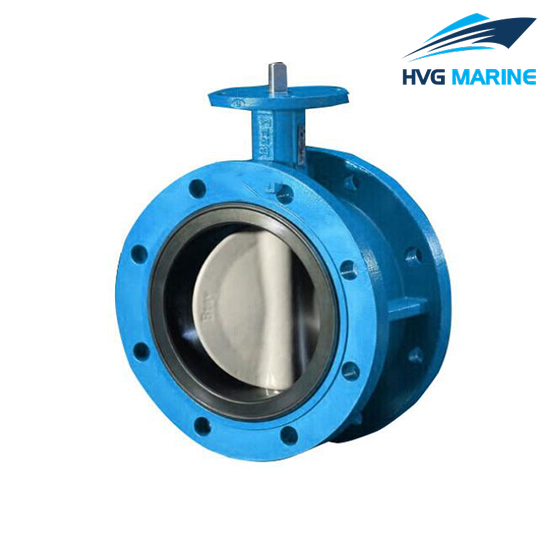

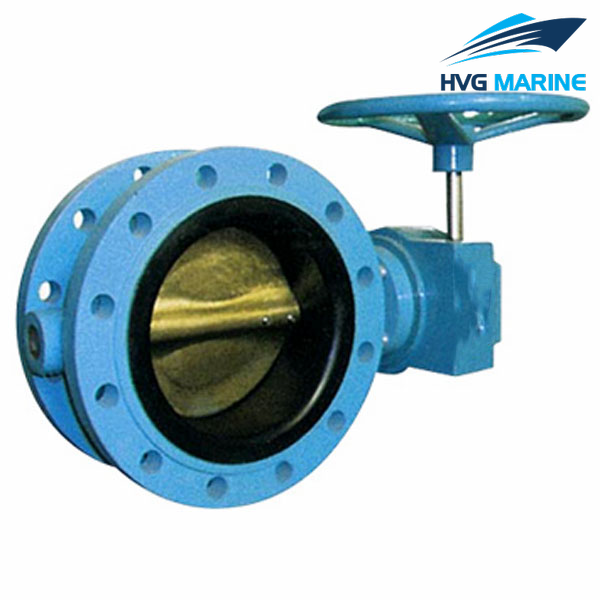

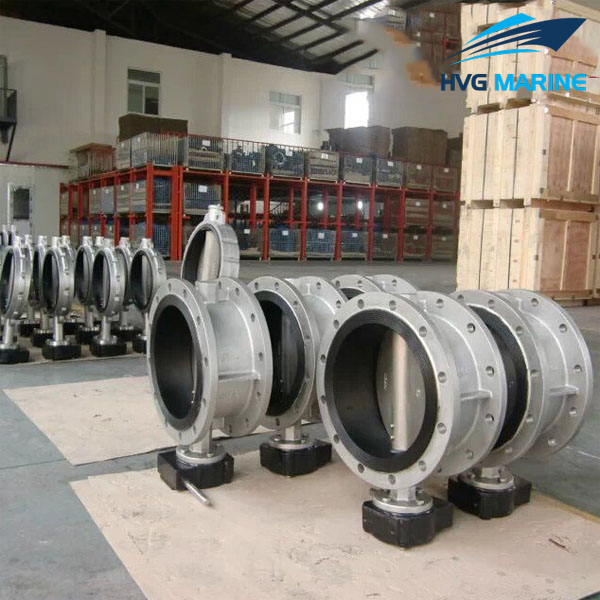

HVG MARINE VALVE 0164: Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k

1.Test standard: JISF7400.

2.End standard: JISB2220.

3.End type:Flange.

4.Pressure: 5k/10k.

5.DN: 125mm-350mm.

6.Main material:

Body/Bonnet: FCD450/FC200;
Seat: NBR;
Stem: SUS403;
Disc: SUS304/BC6.

7.Application:Water piping,oil piping,steam piping,acid piping etc

8.Test pressure:

PN	5K	10K
Body/Mpa	1.03	2.06
Seat/Mpa	0.76	1.47

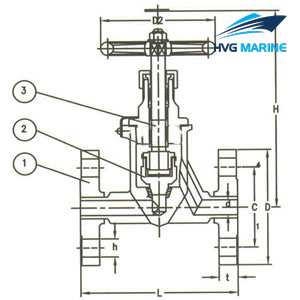

Drawing of Marine Forged Steel Globe Valve JIS F7421 20k:

Technical specification:

Specification of Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k:

Marine Double Flanged Type Butterfly Valve JIS F7480 5k

DN/mm	D/mm	D1/mm	L/mm	n*d/mm	n-Th/mm
125	250	200	100	4xΦ19	4-M16
150	280	230	100	4xΦ19	4-M16
200	330	280	100	4xΦ23	4-M20
250	400	345	110	8xΦ23	4-M20
300	445	390	110	8xΦ23	4-M20
350	490	435	120	8xΦ25	4-M22

Marine Double Flanged Type Butterfly Valve JIS F7480 10k

DN/mm	D/mm	D1/mm	L/mm	n*d/mm	n-Th/mm
125	250	210	100	4xΦ23	4-M20
150	280	240	100	4xΦ23	4-M20
200	330	290	100	8xΦ23	4-M20
250	400	355	110	8xΦ25	4-M22
300	445	400	110	8xΦ25	8-M22
350	445	480	120	8xΦ25	8-M22
