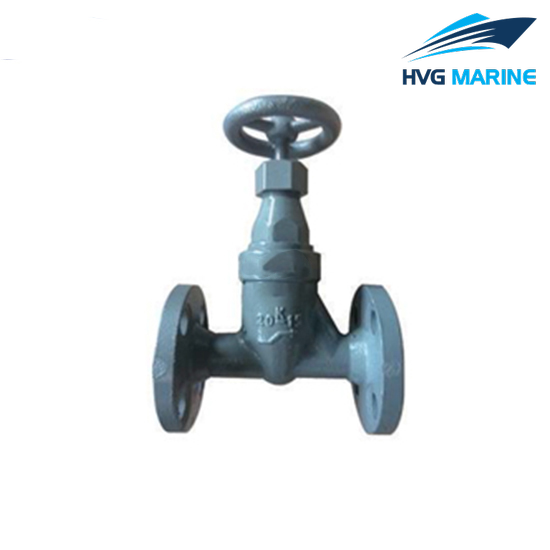

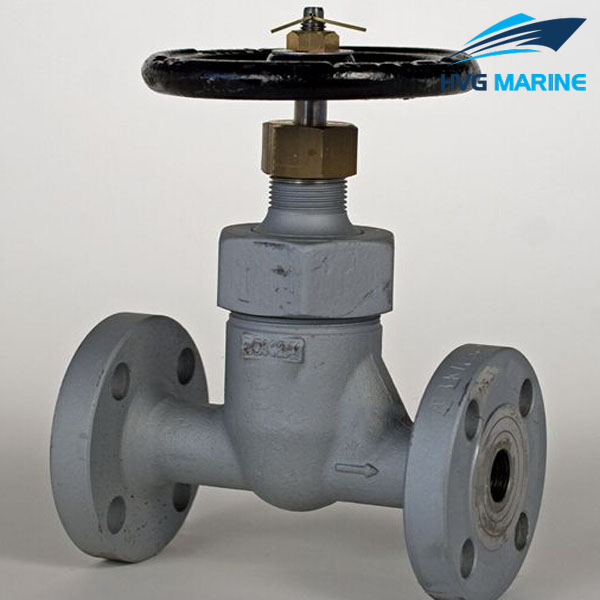

HVG MARINE VALVE 0163: Marine Forged Steel Globe Valve JIS F7421 20k
1.Test standard: JISF7400.
2.End standard: JISB2220.
3.End type:F/S/U.
4.Pressure: 20k.
5.DN:
- ‘F’type:15mm-20mm;
- ‘S’type:6mm and 10mm;
- ‘U’type:6mm and 10mm.
6.Main material:
- Body：SC49；
- Stem:SUS403;
- Disc:SUS402J1.
7.Application:Oil piping,water piping and steam piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
Drawing of Marine Forged Steel Globe Valve JIS F7421 20k:
