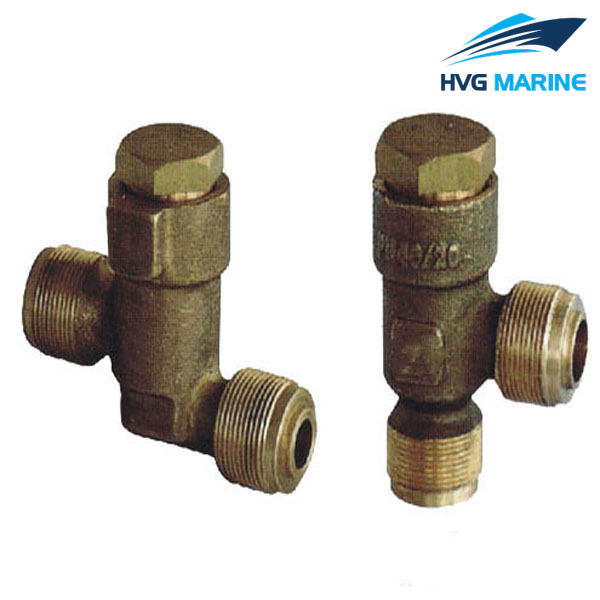

HVG MARINE VALVE 0137: Marine Bronze Male Screw Thread Check Valve GB/T597-1983
1.Design standard:GB600-82.
2.End standard:CB56-80.
3.End type:Thread.
4.PN:4.0Mpa.
5.DN:10mm-32mm.
6.Main material:
7.Application:Sea water piping,fresh water piping,oil piping and steam piping.
8.Function:Such valves are used for preventing refluence.

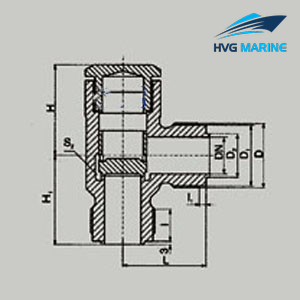

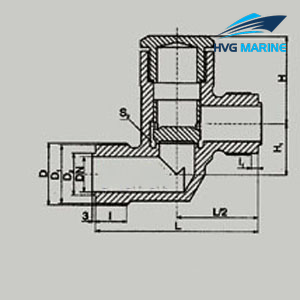

Drawing of Marine Bronze Male Screw Thread Check Valve GB/T597-1983:
|
DN/mm |
Structure dimension |
Thread jiont |
Wrench size mm |
Lift range |
Weight kg |
||||||||||
|
L/mm |
H/mm |
H1/mm |
D/mm |
D1/mm |
D2/mm |
l/mm |
l1/mm |
||||||||
|
Type A |
Type B |
Type A |
Type B |
Type A |
Type B |
m |
Type A |
Type B |
|||||||
|
10 |
94 |
47 |
54 |
20 |
41 |
M27x1.5 |
24.8 |
14 |
16 |
3 |
27 |
32 |
7 |
0.61 |
0.58 |
|
15 |
110 |
55 |
61 |
25 |
52 |
M36x2 |
33 |
22 |
22 |
5 |
32 |
41 |
10 |
1.00 |
0.94 |
|
20 |
116 |
58 |
65 |
32 |
55 |
M39x2 |
36 |
25 |
23 |
5 |
36 |
46 |
12 |
1.19 |
1.24 |
|
25 |
130 |
65 |
70 |
38 |
64 |
M48x2 |
45 |
32 |
26 |
6 |
46 |
50 |
14 |
1.71 |
1.58 |
|
32 |
140 |
70 |
84 |
46 |
72 |
M56x2 |
53 |
38 |
28 |
6 |
46 |
60 |
16 |
2.87 |
2.61 |
