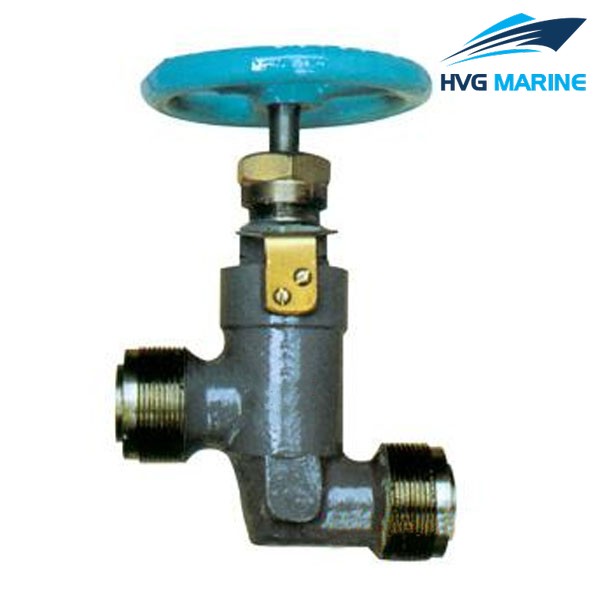

HVG MARINE VALVE 0136: Marine Forged Steel Male Screw Thread Stop Check Valve GB/T1241-1983

1.Design standard:GB600-82.

2.End standard:CB56-80.

3.End type:Thread.

4.PN:4.0Mpa.

5.DN:10MM-32MM.

6.Main material:

Body/Bonnet:FS;
Seat:SS410/BC6;
Stem:SS410/BS;
Disc:SS410/BC6.

7.Application:Sea water piping,fresh water piping,oil piping and steam piping.

8.Function:Such valves are used for on-off duty and preventing refluence.

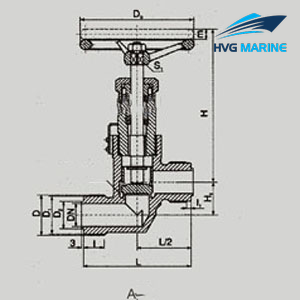

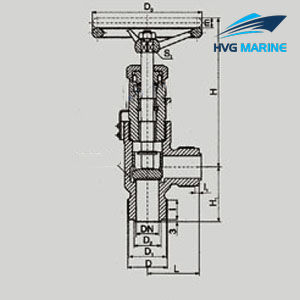

Drawing of Marine Forged Steel Male Screw Thread Stop Check Valve GB/T1241-1983:

Technical specification:

Fundamental dimensions of Marine Forged Steel Male Screw Thread Stop Check Valve GB/T1241-1983:

DN/MM	Structure dimension					Thread joint					Hand wheel		Lift range	Weight kg
	L/mm		H/mm	H1/mm		D/mm	D1/mm	D2/mm	l/mm	l₁/mm	Hand wheel		Lift range	Weight kg
	Type A	Type B	H/mm	Type A	Type B	D/mm	D1/mm	D2/mm	l/mm	l₁/mm	D0/mm	S1/mm	m	Type A	Type B
10	94	47	128	20	41	M27x1.5	24.8	14	16	3	80	8	7	1.00	0.97
15	110	55	143	25	52	M36x2	33	22	22	5	80	8	10	1.60	1.54
20	116	58	154	32	55	M39x2	36	25	23	5	100	9	12	2.03	1.87
25	130	65	168	38	64	M48x2	45	32	26	6	120	11	14	2.85	2.57
32	140	70	200	46	72	M56x2	53	38	28	6	140	12	16	4.48	4.12
