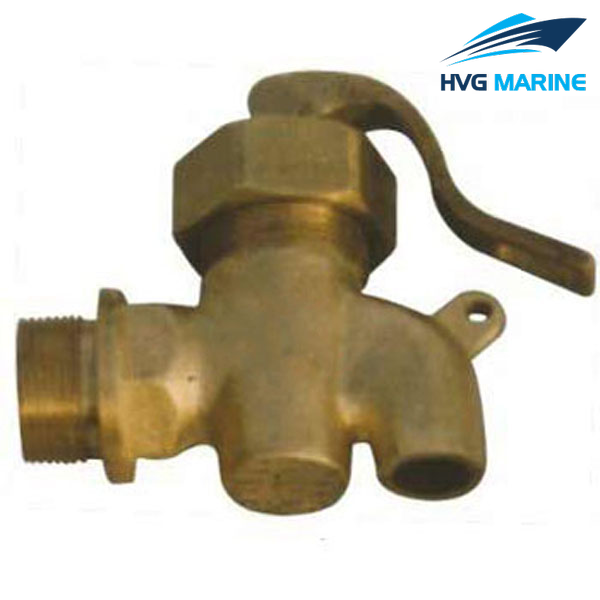

HVG MARINE VALVE 0122: Marine Bronze Male Screw Thread Drain Cock GB/T599-1996
1.Design standard:GB600-82.
2.End standard:CB56-80.
3.End type:Thread.
4.PN:0.1/1.0/1.6/2.5Mpa.
5.DN:6mm-32mm.
6.Main material:
7.Application:Sea water piping,fesh water piping and oil piping.
8.Function:Such cocks are used for on-off duty.
Drawing of Marine Bronze Male Screw Thread Drain Cock GB/T599-1996:

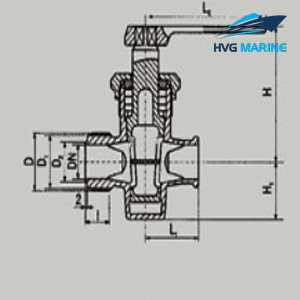

Chart 1 Fundamental dimensions of type A:
|
PN |
DN |
Structure Dimension |
Thread Connection |
Handle |
Thickness |
Weight |
||||||||
|
MPa |
mm |
L |
L1 |
Hi |
H |
D |
Di |
D2 |
l |
11 |
12 |
Lo |
6 |
kg |
|
2.5 |
6 |
60 |
25 |
20 |
60 |
M22×1 5 |
19 8 |
10 |
14 |
3 |
3 |
100 |
5 |
0.40 |
|
10 |
69 |
30 |
27 |
72 |
M27×1 5 |
24.8 |
14 |
16 |
3 |
3 |
110 |
5 |
0.63 |
|
|
15 |
87 |
41 |
37 |
92 |
M36×2 |
33.0 |
22 |
22 |
5 |
3 |
115 |
5 |
0.94 |
|
|
1.6 |
20 |
92 |
43 |
40 |
99 |
M36X2 |
33.0 |
24 |
20 |
3 |
2 |
125 |
4 |
1.43 |
|
25 |
103 |
50 |
42 |
108 |
M42×2 |
39.0 |
29 |
21 |
3 |
2 |
140 |
4 |
1.69 |
|
|
1.0 |
32 |
1 19 |
56 |
49 |
120 |
M48×2 |
45 0 |
36 |
21 |
3 |
2 |
160 |
5 |
3.21 |

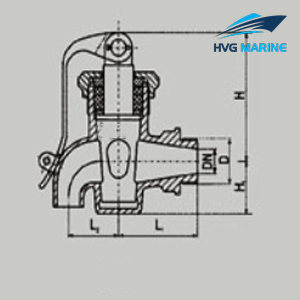

Chart 2 Fundamental dimensions of type B:
|
PN |
DN |
Structure Dimension |
Thread Connection |
Thickness |
Handle |
Hex. Subtense |
Locking hole |
Weight |
|||
|
MPa |
mm |
L |
L1 |
Hi |
H |
D |
t |
Lo |
S |
D |
kg |
|
0.1 |
10 |
58 |
14 |
21 |
58 |
M22×1.5 |
3 |
80 |
0.58 |
0.58 |
0.58 |
|
15 |
67 |
18 |
26 |
65 |
M27×2 |
3 |
85 |
0.88 |
0.88 |
0.88 |
|
|
20 |
81 |
20 |
32 |
77 |
M33×2 |
3 |
100 |
1.18 |
1.18 |
1.18 |
|
|
25 |
98 |
22 |
37 |
90 |
M42×2 |
3 |
120 |
1.78 |
1.78 |
1.78 |
|
