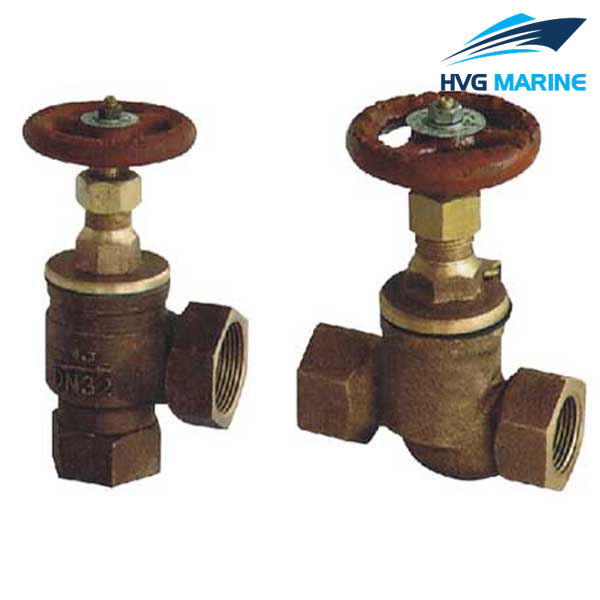

HVG MARINE VALVE 0119: Marine Cast Bronze Female Thread Stop Valve CB/T309-1999
1.Design standard:GB600-82.
2.End standard:CB56-80.
3.End type:Thread.
4.PN:1.6Mpa.
5.DN:
6.Main material:
7.Application:Sea water piping,fresh water piping and oil piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.

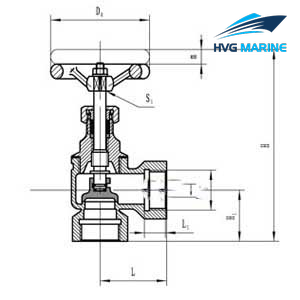

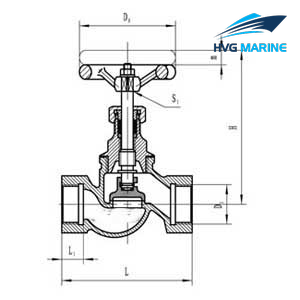

Drawing of Marine Cast Bronze Female Thread Stop Valve CB/T309-1999:
|
DN mm |
Structure dimension/mm |
Threa jioint |
Hand wheel |
Lift rande |
Weight kg |
||||||||
|
L |
H |
H1 |
|||||||||||
|
A |
B |
A |
B |
B |
D1 |
S |
L1 |
D0 |
S1 |
m |
A |
B |
|
|
6 |
65 |
– |
86 |
– |
– |
G1/4G’ |
19 |
10 |
50 |
6 |
5 |
0.35 |
– |
|
10 |
75 |
– |
88 |
– |
– |
G3/8′ |
22 |
12 |
50 |
6 |
5 |
0.44 |
– |
|
15 |
84 |
35 |
100 |
125 |
35 |
G1/2 |
27 |
14 |
50 |
6 |
6 |
0.56 |
0.55 |
|
20 |
95 |
40 |
112 |
143 |
40 |
G3/4′ |
36 |
16 |
65 |
7 |
7 |
0.90 |
0.91 |
|
25 |
110 |
45 |
125 |
158 |
45 |
G1 |
41 |
18 |
80 |
8 |
8 |
1.26 |
1.20 |
|
32 |
130 |
54 |
139 |
176 |
54 |
G11/4′ |
50 |
20 |
80 |
8 |
8 |
2.02 |
2.02 |
|
40 |
150 |
65 |
155 |
220 |
65 |
G11/2′ |
60 |
22 |
120 |
11 |
14 |
2.93 |
2.93 |
|
50 |
180 |
80 |
175 |
283 |
80 |
G2′ |
70 |
24 |
120 |
11 |
15 |
4.37 |
3.83 |
