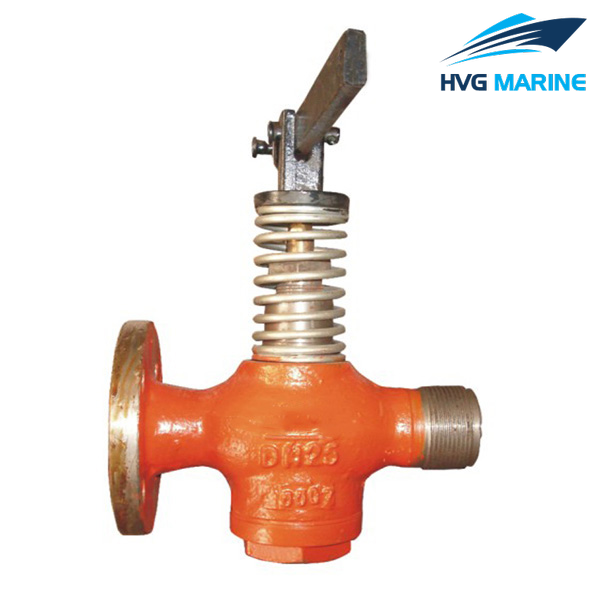

HVG MARINE VALVE 0113: Marine Self-closing Drain Valve CB/T601-1992
1.Design standard:CB/T601-1992.
2.End standard:GB/T2501&GB/T569.
3.End type:Flange.
4.PN:0.25Mpa.
5.DN:15mm-40mm.
6.Main material:
7.Application:Sea water piping,fresh water piping and oil piping.

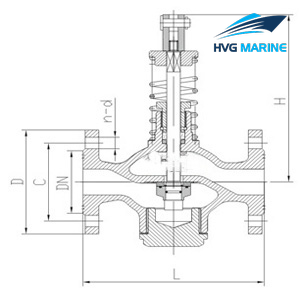

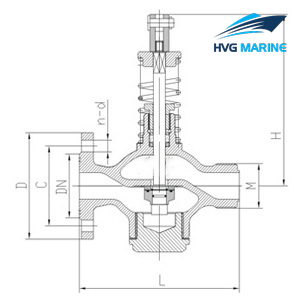

Drawing of Marine Self-closing Drain Valve CB/T601-1992:
Chart 1 Fundamental dimensions of type A:
|
DN |
Structure Dimension |
Flange |
Thread Joint |
Lift Range |
Weight |
|||||||||||||
|
mm |
L |
L1 |
L2 |
H |
H1 |
δ |
D |
D1 |
D2 |
b |
f |
n |
d |
Th. |
d1 |
d2 |
m |
kg |
|
25 |
136 |
183 |
130 |
168 |
62 |
6 |
105 |
73 |
36 |
12 |
1 |
4 |
13 |
M42×2 |
39 |
29 |
10 |
3.1 |
|
40 |
170 |
203 |
140 |
195 |
80 |
7 |
125 |
93 |
74 |
13 |
1 |
6 |
15 |
– |
– |
– |
13 |
6.9 |
Chart 2 Fundamental dimensions of type AS:
|
DN |
Structure Dimension |
Flange |
Thread Joint |
Lift Range |
Weight |
|||||||||||||
|
mm |
L |
L1 |
L2 |
H |
Hi |
δ |
D |
D1 |
D2 |
b |
f |
n个 |
d |
Th． |
d1 |
d2 |
m |
kg |
|
15 |
130 |
165 |
120 |
146 |
46 |
4 |
80 |
55 |
40 |
12 |
2 |
4 |
11 |
M30×2 |
27 |
19 |
7 |
1.75 |
|
125 |
160 |
183 |
130 |
168 |
62 |
6 |
100 |
75 |
60 |
14 |
2 |
4 |
11 |
M42×2 |
39 |
29 |
10 |
3.64 |
|
140 |
200 |
203 |
140 |
195 |
80 |
7 |
130 |
100 |
80 |
16 |
3 |
4 |
14 |
— |
— |
— |
13 |
6.93 |
