HVG MARINE VALVE 0114

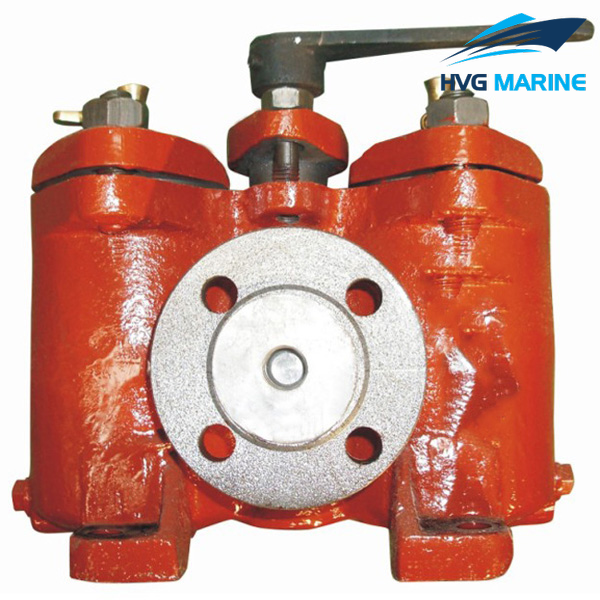

HVG MARINE VALVE 0114: Marine Low Pressure Oil Strainer CB/T425-1994

1.Design standard:CB/T425-1994

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.4Mpa.

5.DN:20mm-100mm.

6.Main material:

Body/Bonnet:HT200;
Seat:SS410/BC6;
Stem:SS410/BRASS;
Disc:SS410/BC6.

7.Application:Oil piping system.

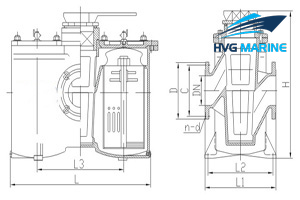

Drawing of Marine Low Pressure Oil Strainer CB/T425-1994:

Technical specification:

Fundamental dimension of Marine Low Pressure Oil Strainer CB/T425-1994:

Chart 1 Fundamental dimensions of type A:

DN	Structure Dimension			Thickness	Flange					Bont		Foot				Weight
mm	H	L1	L	δ	D	Di	D2	d	b	n	Th.	L2	L3	n	d	kg
20	218	223	145	7	95	68	48	13	14	4	M12	115	125	4	11	11
25	238	252	170	7	105	73	56	13	14	4	M12	130	140	4	11	13
32	265	292	195	7	115	83	64	15	15	6	M14	145	165	4	11	16
40	298	340	210	8	125	93	74	15	16	6	M14	165	195	4	13	24
50	340	398	235	8	135	103	84	15	16	6	M14	190	230	4	13	34
65	395	482	270	9	155	123	104	15	15	6	M14	225	280	4	15	42
80	445	560	300	9	170	138	118	15	15	8	M14	260	335	4	15	75
100	538	665	340	10	190	158	138	15	15	8	M14	300	380	4	15	124

Chart 2 Fundamental dimensions of type AS:

DN	Structure Dimension			Thickness	Flange					Bont		Foot				Weight
(mm)	H	L1	L	δ	D	D1	D2	d	b	n	Th	L2	L3	n	d	kg
20	218	223	145	7	90	65	50	11	14	4	M10	115	125	4	11	10.8
25	238	252	170	7	100	75	60	11	14	4	M10	130	140	4	11	12.8
32	265	292	197	7	120	90	70	14	16	4	M14	145	165	4	11	16.9
40	298	340	210	8	130	100	80	14	16	4	M14	165	195	4	13	24.2
50	340	398	235	8	140	110	90	14	16	4	M14	190	230	4	13	34.2
65	395	482	272	9	160	130	110	14	16	4	M14	225	280	4	15	42.6
80	445	560	306	9	190	150	128	18	18	4	M16	260	335	4	15	76.7
100	538	665	346	10	210	170	148	18	18	4	M16	300	380	4	15	126.0
