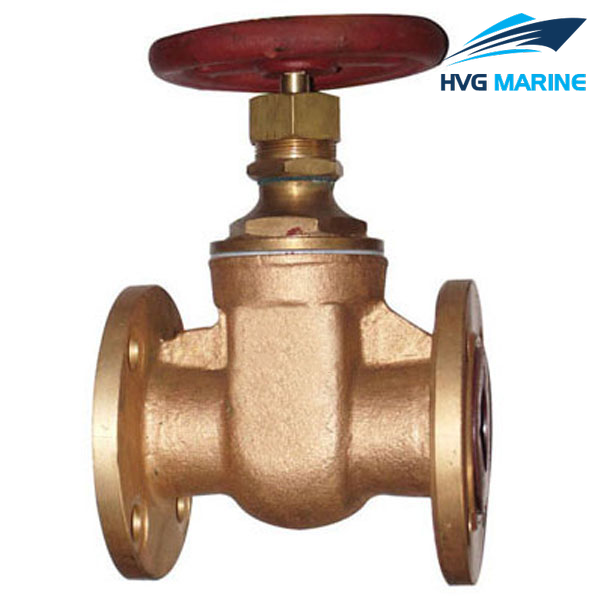

    HVG MARINE VALVE 0081: Marine Bronze Flanged Gate Valve CBM1090-81

    • 1.Design standard:CBM1090-81.
    • 2.End standard:CBM1020.
    • 3.End type:Flange.
    • 4.PN:0.5Mpa.
    • 5.DN:15mm-40mm.
    • 6.Main material:
      • Body/Bonnet:BC6;
      • Seat:BC6;
      • Stem:BS;
      • Disc:BC6.
    • 7.Application:Sea water,fresh water,oil and steam piping.
    • 8.Function:Such valves are used for on-off duty.

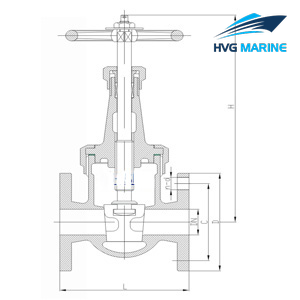

    Drawing of Marine Bronze Flanged Gate Valve CBM1090-81:

    Technical specification:

    • Fundamental dimensions of Marine Bronze Flanged Gate Valve CBM1090-81:

    DN

    Flange connection dimension

    Height

    Structure length

    mm

    D

    C

    n

    d

    H

    L

    15

    80

    60

    4

    12

    103

    90

    20

    85

    65

    4

    12

    111

    100

    25

    95

    75

    4

    12

    124

    110

    32

    115

    90

    4

    15

    145

    130

    40

    120

    95

    4

    15

    165

    140
