MARINE VALVE 0080
    • MARINE VALVE 0080
    HVG MARINE VALVE 0080

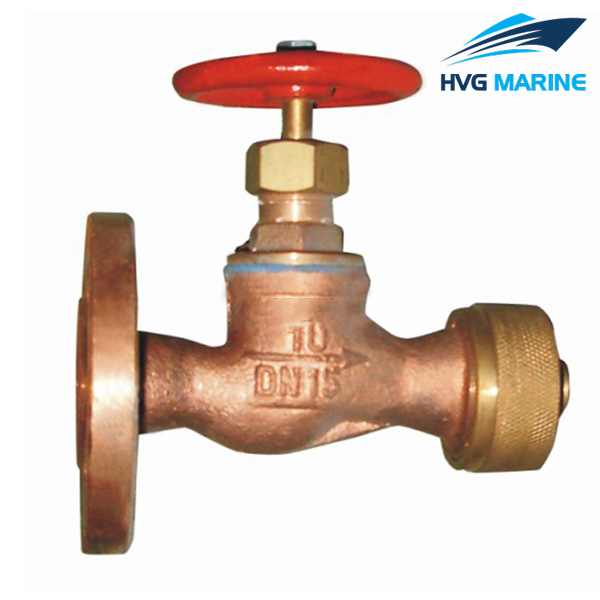

    HVG MARINE VALVE 0080: Marine Bronze Hose Connection Valve CBM1109-82:

    • 1.Design standard:CBM1109-82.
    • 2.End standard:CBM1020.
    • 3.End type:Flange.
    • 4.PN:1.0Mpa.
    • 5.DN:15mm&25mm.
    • 6.Main material:
      • Body/Bonnet:BC6;
      • Seat:BC6;
      • Stem:BS;
      • Disc:BC6.
    • 7.Application:Sea water,fresh water,air and steam piping.
    • 8.Function:Such valves are used for on-off duty and hose connection.

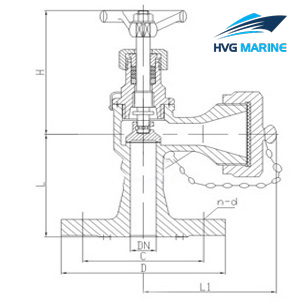

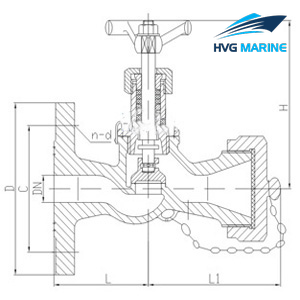

    Drawing of Marine Bronze Hose Connection Valve CBM1109-82:

    Technical specification:

    • Fundamental dimensions of Marine Bronze Hose Connection Valve CBM1109-82:

    DN

    Flange connection dimension

    Height

    Structure length

    H

    L

    L1

    L2

    mm

    D

    C

    n

    d

    Type A

    Type B

    Type A

    Type B

    15

    95

    70

    4

    15

    101

    91

    73

    55

    70

    60

    25

    125

    90

    4

    19

    126

    111

    83

    65

    85

    70
