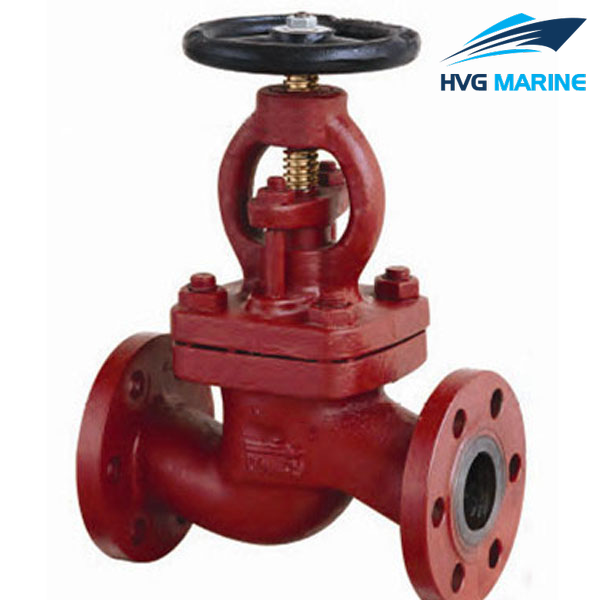

HVG MARINE VALVE 0079: Marine Cast Iron Flanged Globe Valve CBM1087-81

1.Design standard:CBM1087-81.
2.End standard:CBM1005.
3.End type:Flange.
4.PN:0.5Mpa.
5.DN:50mm-250mm.
6.Main material:
- Body/Bonnet:HT20-40;
- Seat:ZQAl9-2;
- Stem:ZQAl9-2;
- Disc:ZQSn10-2.
7.Application:Sea water,fresh water,fuel oil and steam piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.

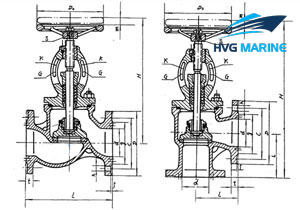

Drawing of Marine Cast Iron Flanged Globe Valve CBM1087-81:

DN/mm	Flange connection dimension				Height		Structure length
	D/mm	C/mm	n	d/mm	H/mm		L/mm
	D/mm	C/mm	n	d/mm	Type A	Type B	Type A	Type B
50	130	105	4	15	288	358	210	100
65	155	130	4	15	310	392	250	115
80	180	145	4	19	345	434	280	130
100	200	165	8	19	374	475	.340	150
125	235	200	8	19	426	536	410	170
150	265	230	8	19	487	605	480	190
200	320	280	8	23	623	759	570	220
250	385	345	12	23	750	925	740	275
