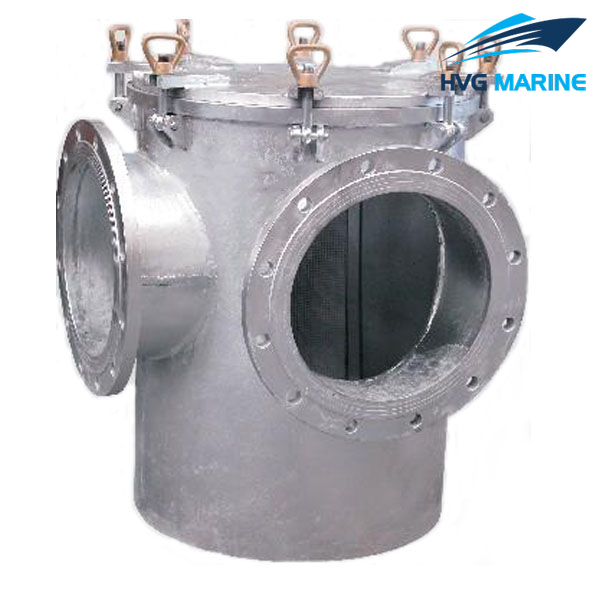

HVG MARINE VALVE 0069: Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRS
1.Design standard:CB/T497-94.
2.End standard:GB569/GB2501.
3.End type:Flange.
4.PN:0.1Mpa.
5.DN:40mm-350mm.
6.Main material:
7.Application:Fresh water and sea water.

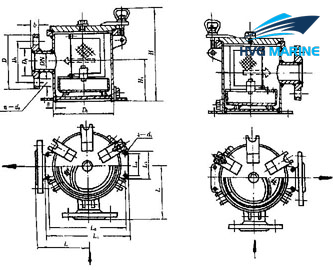

Drawing of Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRS；
Chart 1 Fundamental dimensions of type BL/BR:
|
DN |
L |
H |
H1 |
D0 |
δ |
D |
D1 |
D2 |
b |
d0 |
n |
Th. |
L1 |
L2 |
L3 |
L4 |
d1 |
Weight/kg |
|
40 |
135 |
225 |
92 |
133 |
5 |
125 |
93 |
74 |
15 |
15 |
6 |
M14 |
_______________ |
12.9 |
||||
|
50 |
135 |
225 |
92 |
133 |
5 |
135 |
103 |
84 |
15 |
15 |
6 |
M14 |
13.1 |
|||||
|
65 |
155 |
325 |
122 |
155 |
5 |
155 |
123 |
104 |
14 |
15 |
6 |
M14 |
17.2 |
|||||
|
80 |
175 |
360 |
152 |
180 |
6 |
170 |
138 |
118 |
14 |
15 |
8 |
M14 |
38.2 |
|||||
|
100 |
210 |
415 |
182 |
250 |
6 |
190 |
158 |
138 |
14 |
15 |
8 |
M14 |
36.5 |
|||||
|
125 |
210 |
445 |
182 |
257 |
6 |
215 |
183 |
164 |
14 |
15 |
10 |
M14 |
41.6 |
|||||
|
150 |
245 |
470 |
190 |
312 |
6 |
240 |
208 |
190 |
14 |
15 |
12 |
M14 |
60.2 |
|||||
|
200 |
270 |
550 |
240 |
362 |
8 |
295 |
264 |
247 |
15 |
15 |
12 |
M14 |
440 |
410 |
80 |
50 |
17 |
89.6 |
|
250 |
300 |
675 |
315 |
450 |
8 |
365 |
327 |
306 |
16 |
17 |
14 |
M16 |
520 |
490 |
80 |
50 |
17 |
137 |
|
300 |
330 |
770 |
340 |
500 |
8 |
430 |
386 |
360 |
19 |
21 |
14 |
M20 |
590 |
560 |
100 |
70 |
17 |
175 |
|
350 |
425 |
963 |
508 |
580 |
10 |
480 |
436 |
410 |
20 |
21 |
16 |
M20 |
680 |
640 |
120 |
80 |
19 |
359.4 |
Chart 2 Fundamental dimensions of type BLS/BRS:
|
DN |
L |
H |
H1 |
D0 |
δ |
D |
D1 |
D2 |
b |
d0 |
n |
Th. |
L1 |
L2 |
L3 |
L4 |
d1 |
Weight/kg |
|
40 |
135 |
225 |
92 |
133 |
5 |
130 |
100 |
80 |
16 |
14 |
4 |
M12 |
_______________ |
13.0 |
||||
|
50 |
135 |
225 |
92 |
133 |
5 |
140 |
110 |
90 |
16 |
14 |
4 |
M12 |
13.2 |
|||||
|
65 |
155 |
325 |
122 |
155 |
5 |
160 |
130 |
110 |
16 |
18 |
4 |
M12 |
17.4 |
|||||
|
80 |
175 |
360 |
152 |
180 |
6 |
190 |
150 |
128 |
18 |
18 |
4 |
M16 |
21.7 |
|||||
|
100 |
210 |
415 |
182 |
250 |
6 |
210 |
170 |
148 |
18 |
18 |
4 |
M16 |
38.4 |
|||||
|
125 |
210 |
445 |
182 |
257 |
6 |
240 |
200 |
178 |
20 |
18 |
8 |
M16 |
43.4 |
|||||
|
150 |
245 |
470 |
190 |
312 |
6 |
265 |
225 |
202 |
20 |
18 |
8 |
M16 |
62.1 |
|||||
|
200 |
270 |
550 |
240 |
362 |
8 |
320 |
280 |
258 |
22 |
18 |
8 |
M16 |
440 |
410 |
80 |
50 |
17 |
92.7 |
|
250 |
300 |
675 |
315 |
450 |
8 |
375 |
335 |
312 |
24 |
18 |
12 |
M16 |
520 |
490 |
80 |
50 |
17 |
140 |
|
300 |
330 |
770 |
340 |
500 |
8 |
440 |
395 |
365 |
24 |
22 |
12 |
M20 |
590 |
560 |
100 |
70 |
17 |
176 |
|
350 |
425 |
963 |
508 |
580 |
10 |
490 |
445 |
415 |
26 |
22 |
12 |
M20 |
680 |
640 |
120 |
80 |
19 |
366.4 |
