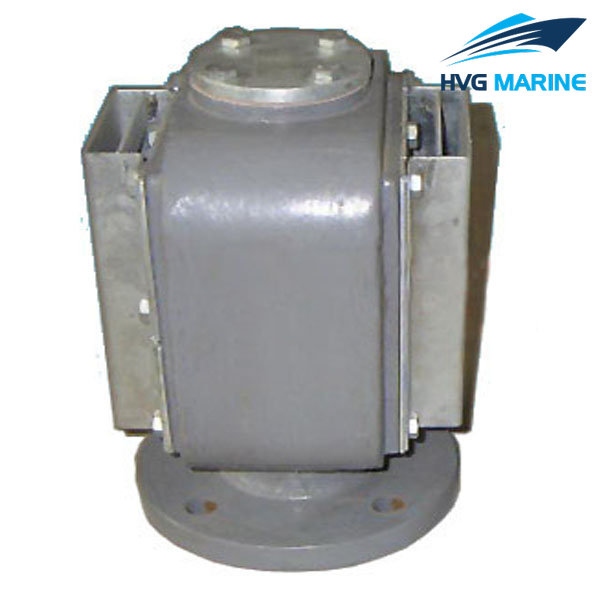

HVG MARINE VALVE 0067: Marine Air Vent Head CB/T3594-1994 type FS
1.Design standard:CB/T3594-1994.
2.End standard:GB/T2501&GB/T569.
3.End type:Flange.
4.DN:50mm-350mm.
5.Main material:
6.Application:Oil cabin and water cabin air tube top.
7.Function:Such air vent heads are used for pressure balance.

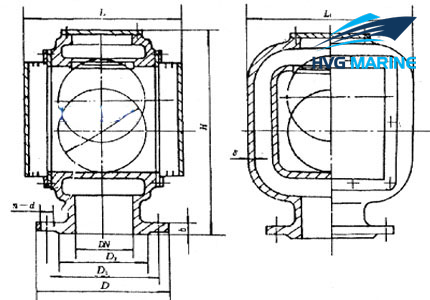

Drawing of Marine Air Vent Head CB/T3594-1994 type FS:
|
DN |
Structure dimension |
Thickness |
Flange connection dimension |
Float |
Weight/kg |
||||||||
|
L |
L1 |
H |
δ |
D |
D1 |
D2 |
b |
n |
d0 |
S |
Bunker |
Tank |
|
|
50 |
125 |
160 |
250 |
7 |
165 |
125 |
102 |
20 |
4 |
18 |
65 |
12.5 |
12.6 |
|
65 |
170 |
200 |
285 |
185 |
145 |
122 |
88 |
19.1 |
19.2 |
||||
|
80 |
200 |
225 |
325 |
200 |
160 |
133 |
8 |
105 |
22.4 |
22.6 |
|||
|
100 |
245 |
275 |
380 |
8 |
220 |
180 |
158 |
22 |
130 |
34.1 |
34.4 |
||
|
125 |
300 |
325 |
440 |
250 |
210 |
184 |
150 |
49.3 |
49.8 |
||||
|
150 |
345 |
370 |
510 |
9 |
285 |
240 |
212 |
24 |
22 |
190 |
94.7 |
95.7 |
|
|
200 |
450 |
475 |
630 |
340 |
295 |
268 |
245 |
157 |
158 |
||||
|
250 |
565 |
590 |
750 |
10 |
395 |
350 |
320 |
26 |
12 |
305 |
222 |
223 |
|
|
300 |
670 |
700 |
870 |
11 |
445 |
400 |
370 |
345 |
302 |
3.4 |
|||
|
350 |
280 |
820 |
1020 |
12 |
505 |
460 |
430 |
16 |
450 |
459 |
461 |
||
