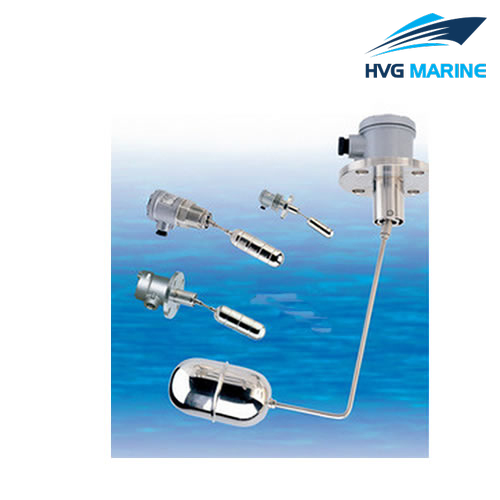

HVG MARINE VALVE 0048: Float Level Switch
- 1. Field: Ship Building, Ship Repair
- 2. Application: It is widely used in ship to control and alarm the liquid level in tank.
- 3. Installation: Top Mounting (Vertical Mounting)
- 4. Max. Working Pressure: 10 kg/cm2
- 5. Max. Working Temperature: 150 ℃
- 6. Switch Type: Micro Switch
- 7. Protection: IP 56, Weather Proof
8. Size:
| Nominal Pressure | Size | O.D | P.C.D | No. of Hole | Diameter of Hole |
| 5 K | 65 mm | 155 mm | 130 mm | 4 Pieces | 15 mm |
9. Parts Name:
| No. | Description |
| 1 | Body |
| 2 | Cover |
| 3 | Flange |
| 4 | Float |
| 5 | Magnet |
| 6 | Swith Box |
| 7 | Name Plate |
| 8 | Cable Gland |
| 9 | Earth Terminal |

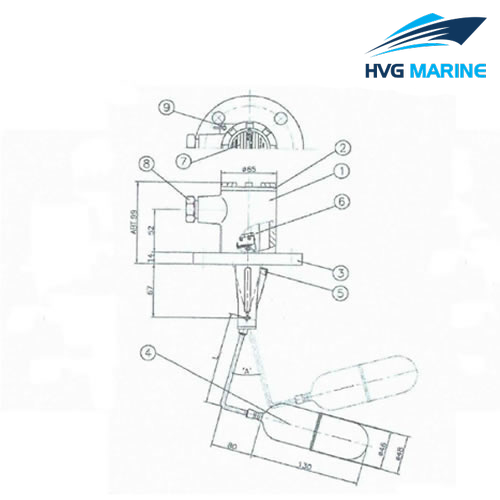

10. Drawing:
