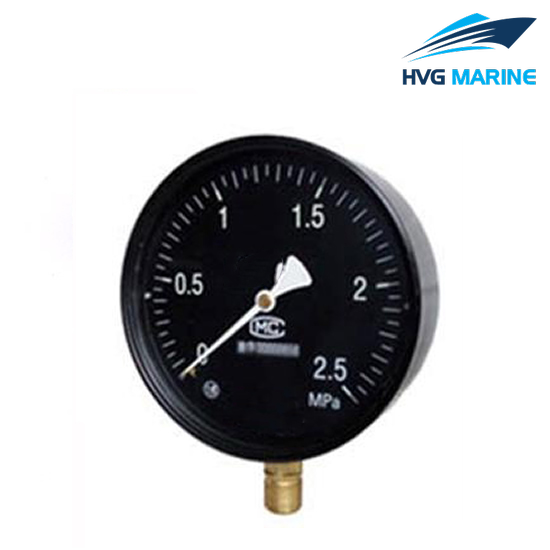

HVG MARINE VALVE 0046: Marine Pressure Meter
- 1. Function: Measure pressure of gas and liguid medium etc.
- 2. Application: Be used in ship and industrial field.
- 3. Working Using metal spring elements as core.
- 4. Measuring Range: 0-60 Mpa
- 5. Accuracy: 2.5 Grade
- 6. Material: Iron Alloy, Al-Alloy, Copper Alloy, Stainless Steel
Marine Pressure Meter Mounting Dimension
|
D |
D1 |
A |
B |
d2 |
d0 |
d1 |
|
60 |
Φ85 |
64 |
48 |
Φ4.5 |
72 |
Φ5 |
|
75 |
Φ98 |
– |
– |
– |
88 |
Φ4.5 |
|
100 |
Φ130 |
102 |
80 |
Φ5.5 |
118 |
Φ6 |
|
150 |
Φ180 |
– |
– |
– |
165 |
Φ6 |
|
200 |
Φ230 |
– |
– |
– |
215 |
Φ6 |
Marine Pressure Meter Connection Screw Thread Dimension
|
Dial Nominal Diameter mm |
Connection Size |
||
|
d |
L mm |
d1 mm |
|
|
60 |
M10X1 |
10 |
Φ4.5 |
|
75 |
M14X1.5 |
14 |
Φ5
|
|
100 |
G3/8 inch |
16 |
|
|
150 |
M20X1.5 G1/2 inch |
20 |
Φ6 |
| 200 | |||
| Remark: When one have special requirements to the connection screw thread, please contact us. | |||

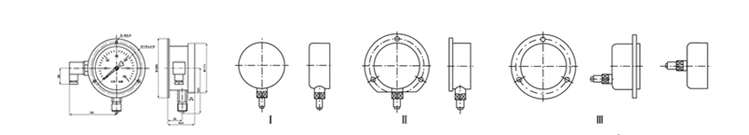

7. Drawing of Marine Pressure Meter:
