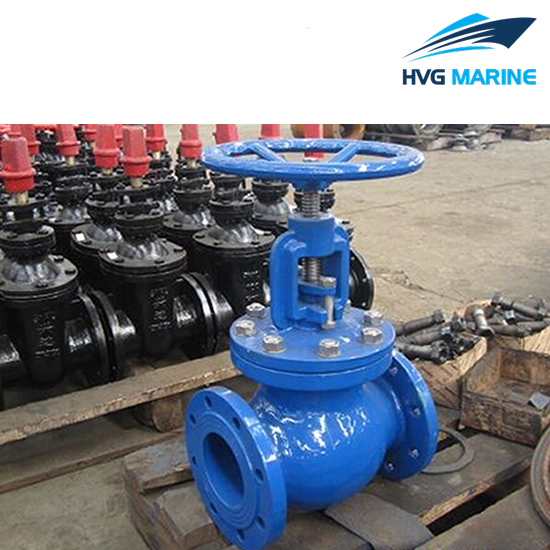

HVG MARINE VALVE 0030: Cast Steel Globe Valve
1. Flanged end according to ASME B16.5 (Raised face-smooth finish)
2. Pressure Rating 150 lbs and 300 lbs
3. Application: Water, Steam, Oil, Gases and Vapours
4. Material for Main Parts:
| Name of Parts | Material |
| Body | ASTM A216 WCB |
| Bonnet | ASTM A216 WCB |
| Stem | ASTM A182 F6a |
| Yoke Nut | ASTM A439 D2 ZCuAL10Fe3 |
| Seat Sealing Face | 13Gr |
| Disc Sealing Face | 13Gr |
| Bonnet Bolt | ASTM A193 B7 |
| Bonnet Nut | ASTM A194 2H |
| Packing | Flexible Graphite |
| Hand Wheel | ASTM A47 |
5. Cast Steel Globe Valve Pressure Rating 150lbs
|
NPS |
L (RF) |
H |
|
1/2” |
108 mm |
320 mm |
|
1” |
127 mm |
335 mm |
|
1-1/2” |
165 mm |
345 mm |
|
2 |
203 mm |
380 mm |
|
2-1/2” |
216 mm |
435 mm |
|
3” |
241 mm |
465 mm |
|
4” |
292 mm |
530 mm |
|
5” |
356 mm |
580 mm |
|
6” |
406 mm |
650 mm |
|
8” |
495 mm |
760 mm |
|
10” |
622 mm |
860 mm |
|
12” |
698 mm |
1000 mm |
|
14” |
787 mm |
1450 mm |
|
16” |
914 mm |
1645 mm |
6. Cast Steel Globe Valve Pressure Rating 300 lbs:
|
NPS |
L (RF) |
H |
|
1/2” |
152 mm |
370 mm |
|
1” |
203 mm |
385 mm |
|
1-1/2” |
229 mm |
405 mm |
|
2 |
267 mm |
425 mm |
|
2-1/2” |
292 mm |
465 mm |
|
3” |
318 mm |
530 mm |
|
4” |
356 mm |
610 mm |
|
5” |
400 mm |
695 mm |
|
6” |
444 mm |
790 mm |
|
8” |
559 mm |
870 mm |
|
10” |
622 mm |
1040 mm |
|
12” |
711 mm |
1231 mm |
|
14” |
762 mm |
1450 mm |
|
16” |
864 mm |
1645 mm |
