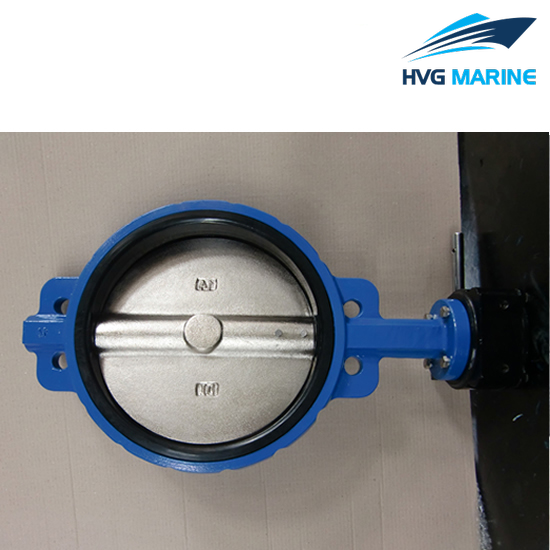

HVG MARINE VALVE 0027: Wafer Type Butterfly Valve:
6. Name of Parts:
| Body | Ductile Iron |
| Disc | Al-Bronze |
| Stem | Stainless Steel |
| Liner | NBR or EPDM |

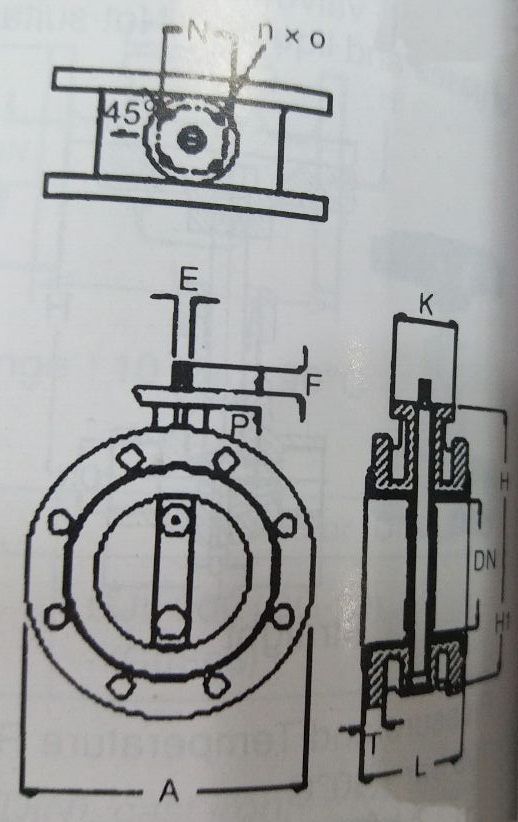

Drawing:
|
IMPA Code |
DN |
A |
E |
H |
H1 |
L |
N |
|
756331 |
50 |
90 |
11 |
118 |
67 |
43 |
70 |
|
756332 |
65 |
105 |
11 |
126 |
74 |
46 |
70 |
|
756333 |
80 |
124 |
11 |
133 |
82 |
46 |
70 |
|
756334 |
100 |
150 |
11 |
147 |
100 |
52 |
70 |
|
756335 |
125 |
182 |
14 |
160 |
112 |
56 |
70 |
|
756336 |
150 |
210 |
14 |
180 |
134 |
56 |
70 |
|
756337 |
200 |
265 |
17 |
204 |
159 |
60 |
70 |
|
756338 |
250 |
315 |
22 |
245 |
195 |
68 |
102 |
|
756339 |
300 |
371 |
22 |
270 |
220 |
78 |
102 |
|
756340 |
350 |
434 |
27 |
315 |
282 |
78 |
125 |
|
756341 |
400 |
488 |
27 |
350 |
307 |
102 |
125 |
|
756342 |
450 |
536 |
36 |
375 |
352 |
114 |
140 |
|
756343 |
500 |
590 |
36 |
415 |
387 |
127 |
140 |
|
756344 |
600 |
685 |
46 |
465 |
452 |
154 |
165 |
