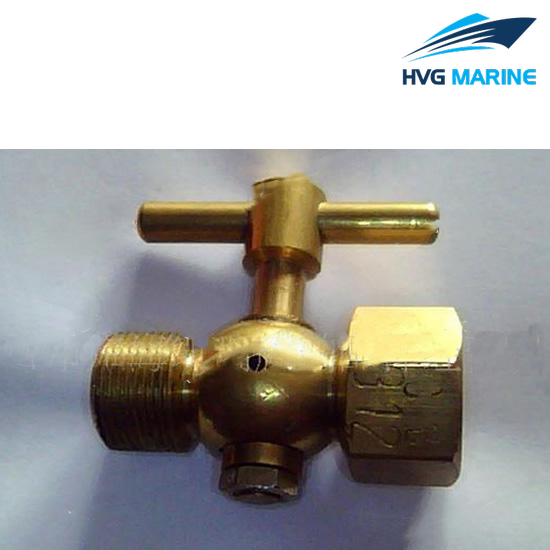

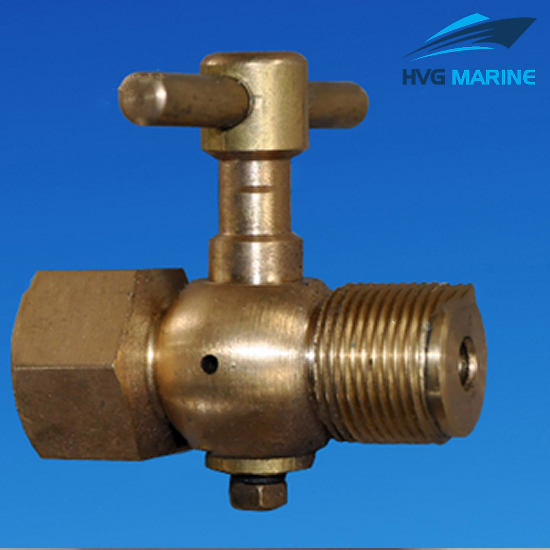

HVG MARINE VALVE 0002: Pressure Gauge Valve

• 1. Type: A.
• 2. Manufacture Standard: CB312-1977.
• 3. End Standard: CB56-80.
• 3. End Type: Thread.
• 4. Nominal Pressure: 4.0 Mpa
• 5. Nominal Diameter: DN6.
• 6. Main material:
  • Body/Bonnet:ZCuSn16Si4;
  • Seat:ZCuSn16Si4;
  • Stem:2Cr13;
  • Disc:QAl9-2.
• 7. Application:Water,air,oil and steam piping.

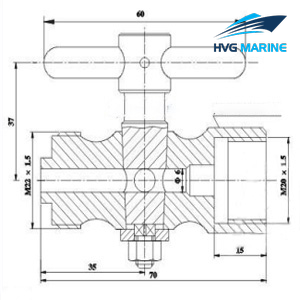

Drawing:
