HVG MARINE VALVE 0001

HVG MARINE VALVE 0001: Marine Pressure Gauge Valve

1. Standard: CB312-1977.
2. Thread End Standard: CB56-80
3. Type: B Type
4. PN: 10.0/16.0Mpa.
5. DN: 6mm.
6. Main material:
- Body/Bonnet:ZCuSn16Si4;
- Seat:ZCuSn16Si4;
- Stem:2Cr13;
- Disc:QAl9-2.

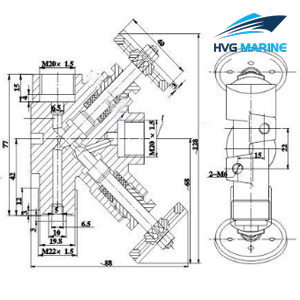

Drawing:
