HVG MARINE STEEL 0124

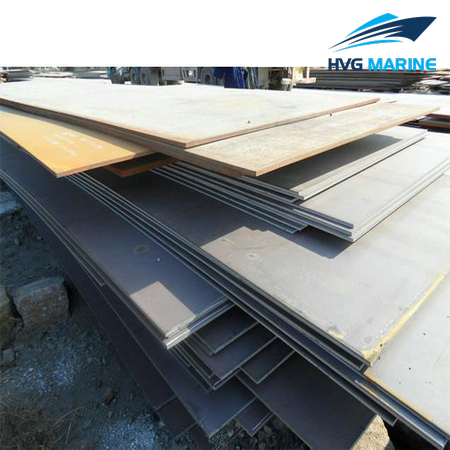

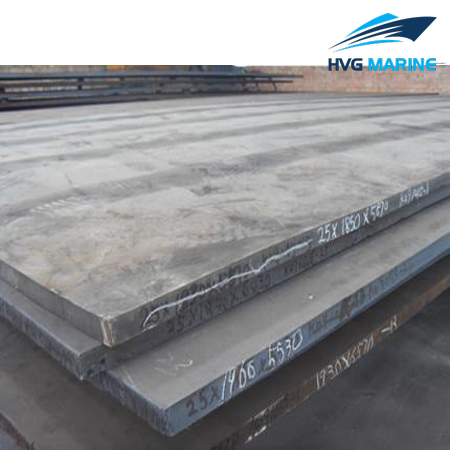

HVG MARINE STEEL 0124: AB EQ43 Shipbuilding Steel Plate

The steel grade AB/EQ43 is ABS grade AB/EQ43. It is equivalent with CCSEH420, BVEH420, NV E420, GL-E420, KREH43, LREH42, KE43, and RINA-E420. AB/EQ43 shipbuilding steel plate is a kind of hot rolled super high tensile strength marine steel plate. Its tensile strength is 420MPa. It has excellent chemical and mechanical properties. The AB/EQ43 shipbuilding steel plate is ideal for offshore platforms and shipbuilding projects. We can provide all kinds of shipbuilding steel plate, including normal strength shipbuilding steel plates, high strength shipbuilding steel plates, and ultra high strength shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa. Besides, we provide a full selection of plate sizes for you. We also can customize plate sizes according to your requirement. If you are interested in our steel plates, welcome to contact us.

Why choose us?

We have rich experience in import & export trade.
We provide you rich selection of shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa.
We have high quality steel plates which are certified by the classification societies.
We provide fast delivery, efficient logistics distribution system.
We make prices reasonably.

Technical specification:

Specifications of AB/EQ43 Shipbuilding Steel Plate

Project	Data
Steel Grade	AB/EQ43
Chemical Composition	C %	≦0.20
	Si %	≦0.55
	Mn %	≦1.70
	P %	≦0.025
	S %	≦0.025
	N %	≦0.020
Mechanical Property	Upper Yield strength (ReH/MPa)	≧420
	Tensile Strength (Rm/MPa)	530~680
	Elongation after Fracture (A/%)	≧18
Charpy V-Notch Impact Test	Longitudinal (KV2/J)	≧42
	Transverse (KV2/J)	≧28
	Test Temperature (℃)	-40
Heat Treatment	TM/QT/TM+T
Plate Size	Thickness (mm)	6~350
	Width (mm)	900~4850
	Length (mm)	3000~25000
Note	It is available to customize the size of steel plate.
