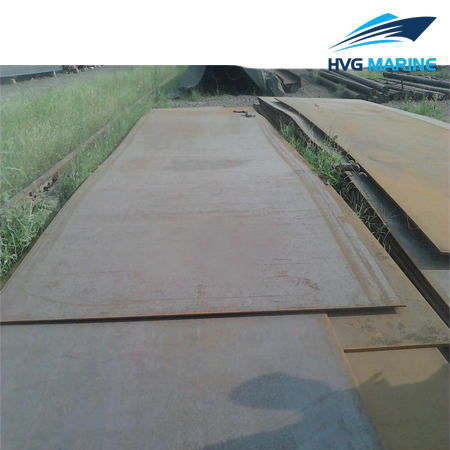

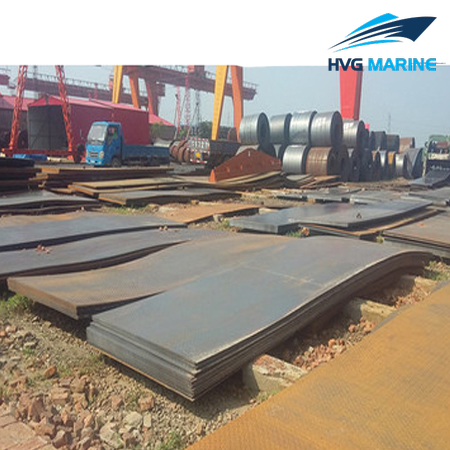

HVG MARINE STEEL 0116: AB EH36 Shipbuilding Steel Plate

The steel grade AB/EH36 is ABS grade AB/EH36. It is equivalent with CCSEH36, BVEH36, NV E36, GL-E36, KREH36, LREH36, KE36, and RINA-EH36. AB/EH36 shipbuilding steel plate is a kind of hot rolled high tensile strength marine steel plate. Its minimum tensile strength is 355MPa. The AB/EH36 shipbuilding steel plate is ideal for offshore platforms and shipbuilding projects. We can provide all kinds of shipbuilding steel plate, including normal strength shipbuilding steel plates, high strength shipbuilding steel plates, and ultra high strength shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa. Besides, we provide a full selection of plate sizes for you. We also can customize plate sizes according to your requirement. The shipbuilding steel that we provide is certified by renowned classification societies. If you are interested in our steel plates, welcome to inquiry!

Why choose us?

We have rich experience in import & export trade.
We provide you rich selection of shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa.
We have high quality steel plates which are certified by the classification societies.
We provide fast delivery, efficient logistics distribution system.
We make prices reasonably.

Technical specification:

Specifications of AB/EH36 Shipbuilding Steel Plate

Project	Data
Steel Grade	AB/EH36
Chemical Composition	C %	≦0.18
	Si %	≦0.50
	Mn %	0.90~1.60
	P %	≦0.025
	S %	≦0.025
	Cu %	≦0.35
	Cr %	≦0.20
	Ni %	≦0.40
	Nb %	0.02~0.05
	V %	0.05~0.10
	Ti %	≦0.02
	Mo %	≦0.08
	N %	—-
Mechanical Property	Upper Yield strength (ReH/MPa)	≧355
	Tensile Strength (Rm/MPa)	490~630
	Elongation after Fracture (A/%)	≧21
Charpy V-Notch Impact Test	Thickness: ≦50mm	Longitudinal (KV2/J)	34
		Transverse (KV2/J)	24
	Thickness: >50~70	Longitudinal (KV2/J)	41
		Transverse (KV2/J)	27
	Thickness: >70~150	Longitudinal (KV2/J)	50
		Transverse (KV2/J)	34
	Test Temperature (℃)	-40
Plate Size	Thickness (mm)	6~350
	Width (mm)	900~4850
	Length (mm)	3000~25000
Note	We can customize plate sizes for you.
