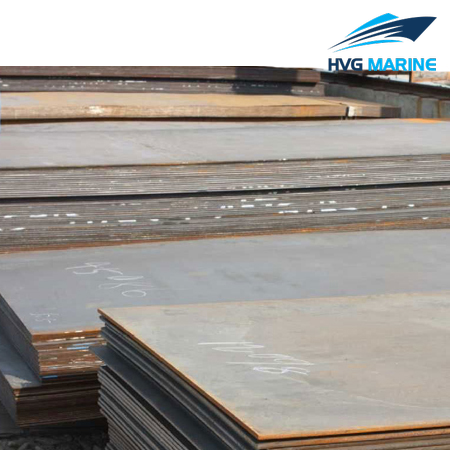

HVG MARINE STEEL 0108: ABS Grade D Shipbuilding Steel Plate

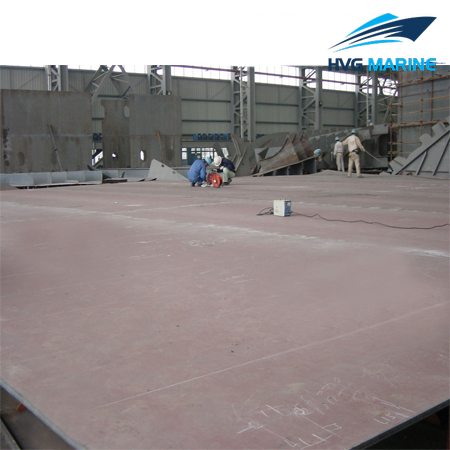

The steel grade of the ship building plate is ABS grade D. It is equivalent with BVD, CCSD, NV D, GL-D, KRD, LRD, KD, RINA-D. It is noted that the grade of normalized plate is AB/DN, however, the grade of hot rolled steel and controlled rolled steel is AB/D. The ABS grade D shipbuilding steel plate is suitable for offshore platforms and hull fabrication. Its tensile strength is 235MPa. It belongs to normal strength shipbuilding steel plate. In addition to normal strength shipbuilding steel plate, we supply high strength shipbuilding steel plate and super high strength shipbuilding steel plate. We provide a large range of plate sizes for you. Of course, if you have any special requirement, we can customize products for you. All shipbuilding steel plates provided are certified by renowned classification societies. If you want to know more details, please contact us. We will reply you as soon as possible.

Our Advantages:

High quality products, certified by authoritative classification societies
A full selection of steel grades and steel sizes
Rich experience in import and export trade
Fast delivery, effective logistic distribution system
Professional pre-sales and after-sales service

Technical specification:

Specifications of ABS Grade D Shipbuilding Steel Plate

Project	Data
Steel Grade	AB/D, AB/DN
Chemical Composition	C %	≦0.18
	Si %	≦0.35
	Mn %	≧0.60
	P %	≦0.030
	S %	≦0.030
	Cu %	≦0.35
	Cr %	≦0.30
	Ni %	≦0.30
Mechanical Property	Upper Yield strength (ReH/MPa)	≧235
	Tensile Strength (Rm/MPa)	400~520
	Elongation after Fracture (A/%)	≧22
Charpy V-Notch Impact Test	Thickness: ≦50mm	Longitudinal (KV2/J)	27
		Transverse (KV2/J)	20
	Thickness: >50~70	Longitudinal (KV2/J)	34
		Transverse (KV2/J)	24
	Thickness: >70~150	Longitudinal (KV2/J)	41
		Transverse (KV2/J)	27
	Test Temperature (℃)	-20
Plate Size	Thickness (mm)	1.2~130
	Width (mm)	900~4800
	Length (mm)	980~25000
Note	We can customize plate sizes for you.
