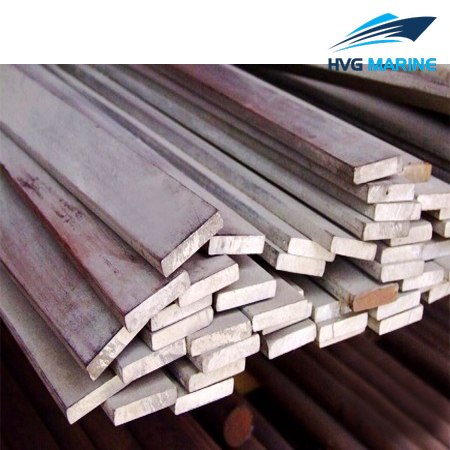

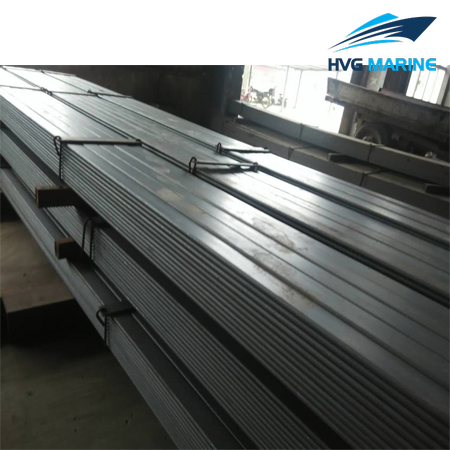

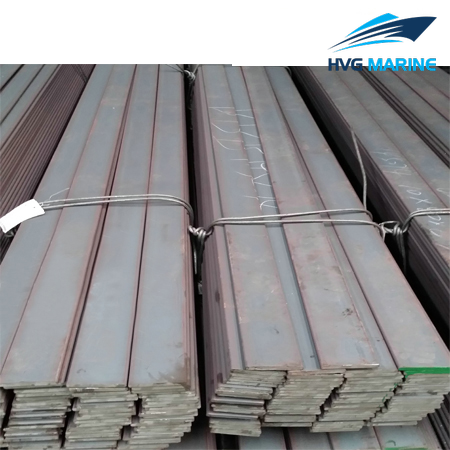

HVG MARINE STEEL 0094: Hot–Rolled Flat Sections for Shipbuilding

Hot-rolled flat sections for shipbuilding are a kind of section steel which are applied to shipbuilding. We can provide you the hot-rolled flat sections for shipbuilding as following dimensions: thickness in the range of 3~60mm, breadth in the range of 10 to 400mm, and customized length. Besides, we also provide you full selection of steel grades Q235, Q345, A36, SS400… The hot-rolled flat sections for shipbuilding are manufactured under exacting standards. The flat sections feature little tolerance, well-shaped and light in weight. If you have any specific requirements, we can customize products for you to some extent. If you are interested in our flat sections, please feel free to contact us. We will reply you soon.

Our Advantages

Best quality products
An ample supply
To support customization
Delivery on time
Rich experience in import and export trade

Drawing of Hot–Rolled Flat Sections

Technical specification:

Product Details
Some Available Dimensions
Measurement Allowance

Project	Data
Material	Q235, Q345, S235, S275 or as customers’ requirements
Standards	GB/T 702-2008
Process	Hot rolling
Sizes	Thickness: 3~60mm Breadth: 10~400mm Length: as per customized

Model	Nominal Dimensions
Model	Breadth	Thickness	Radius
FS75	75	7~16	≦3
FS80	80	7~16	≦3
FS100	100	8~16	≦3
FS120	120	8~16	≦3
FS150	150	9~20	≦3
FS200	200	10~25	≦4
FS250	250	10~25	≦4
FS300	300	12~30	≦5
FS350	350	12~30	≦5
FS400	400	15~35	≦5

Project	Tolerance
Thickness (mm)	t<6	-0.3~+1.0
	6≦t<12	-0.3~+0.8
	12≦t<15	-0.3~+0.5
	t≧15	±0.3
Breadth (mm)	b<100	±1.5
	100≦b<150	±2.0
	150≦b<300	±2.5
	b≧300	±3.5
Length (mm)		0~+80
