HVG MARINE STEEL 0091: Marine UPN Steel Channels

Marine UPN steel channels are a kind of section steel which are manufactured under European standards. They are used to make construction rigid and steady. The marine UPN steel channels have excellent weldability, good riveting and comprehensive mechanical properties. The marine steel channels are cost and time savings by eliminating the need for fabrication work and multiple handing. Besides, the channels are light in weight. We provide you full selection of dimensions. If you have any specific requirements, we are capable of fulfilling you. The steel grades of channels are able to be customized according to your requirements. If you are interested in our marine UPN steel channels, welcome to contact us. You will acquire a satisfactory reply.

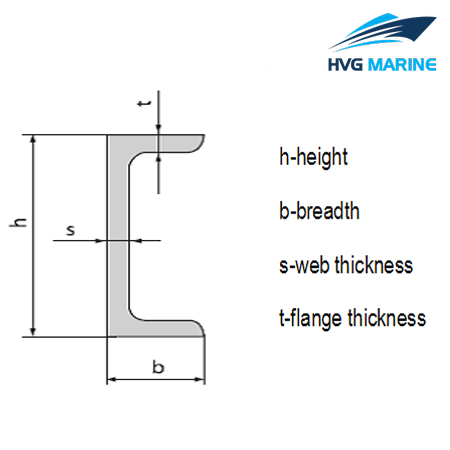

Profile of Marine UPN Steel Channels

Technical specification:

Available Dimensions

UPN	Dimension (mm)				Sectional Area (cm2)	Unit Weight (kg/m)
UPN	h	b	s	t	Sectional Area (cm2)	Unit Weight (kg/m)
30×15	30	15	4.0	4.5	2.21	1.740
40×20	40	20	5.0	5.5	3.66	2.870
40×35	40	35	5.0	7.0	6.21	4.870
50×25	50	25	5.0	6.0	4.92	3.860
50×38	50	38	5.0	7.0	7.12	5.590
60×30	60	30	6.0	6.0	6.46	5.070
65×42	60	42	5.5	7.5	9.03	7.090
80	80	45	6.0	8.0	11.00	8.640
100	100	50	6.0	8.5	13.50	10.600
120	120	55	7.0	9.0	17.00	13.400
140	140	60	7.0	10.0	20.40	16.000
160	160	65	7.5	10.5	24.00	18.800
180	180	70	8.0	11.0	28.00	22.000
200	200	75	8.5	11.5	32.20	25.300
220	220	80	9.0	12.5	37.40	29.400
240	240	85	9.5	13.0	42.30	33.200
260	260	90	10.0	14.0	48.30	37.900
280	280	95	10.0	15.0	53.30	41.800
300	300	100	10.0	16.0	58.80	46.200
320	320	100	14.0	17.5	75.80	59.500
350	350	100	14.0	16.0	77.30	60.600
400	400	110	14.0	18.0	91.50	71.800
