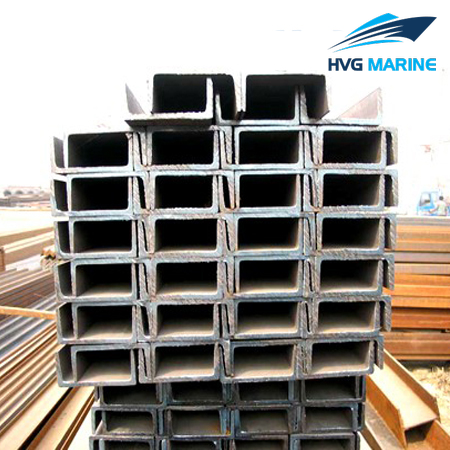

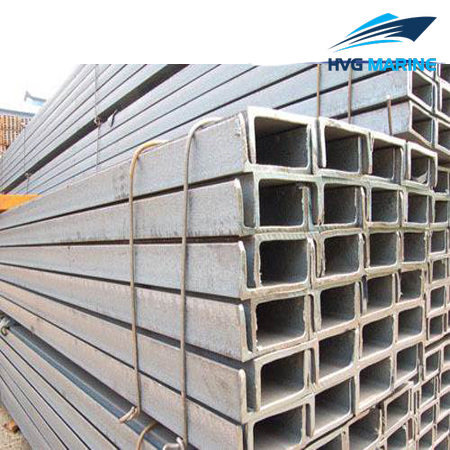

HVG MARINE STEEL 0089: Marine Steel Parallel Flange Channels

Steel channels are a kind of finished long steel products with a solid U-shaped metal section produced with various steel grades. The marine steel parallel flange channels are a kind of hot rolled steel channel. They are described by height, width and thickness, eg, 120×53×5.5. We provide the dimensions, shape and weight of the steel channels according to national standard GB/T 706-2008. The marine steel parallel flange channels good weldability, excellent riveting and comprehensive mechanical properties. The channels provided are high quality, standard-sized and well-shaped. Please contact us, if you have any specific requirements. And if you are interested in our marine steel parallel flange channels, welcome to contact us.

Features

To be Manufactured in line with GB/T 706-2008
To be made of high quality steel
Full selection of steel grades
Standard dimensions with marginal tolerances
Well-shaped

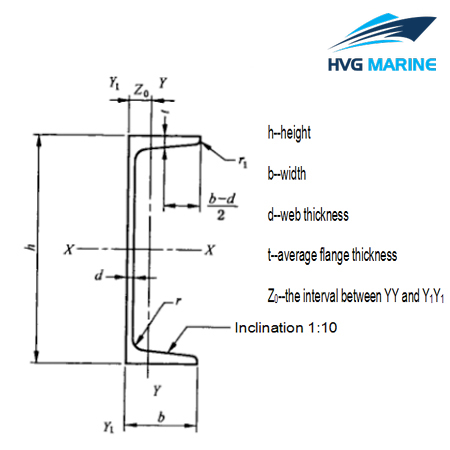

Profile of Marine Steel Parallel Flange Channels

Technical specification:

Dimensions

Model	Sectional Dimension (mm)						Sectional Area (cm2)	Theoretical Weight (kg/m)
Model	h	b	d	t	r	r1	Sectional Area (cm2)	Theoretical Weight (kg/m)
5	50	37	4.5	7.0	7.0	3.5	6.928	5.438
6.3	63	40	4.8	7.5	7.5	3.8	8.451	6.634
6.5	65	40	4.3	7.5	7.5	3.8	8.547	6.709
8	80	43	5.0	8.0	8.0	4.0	10.248	8.045
10	100	48	5.3	8.5	8.5	4.2	12.748	10.007
12	120	53	5.5	9.0	9.0	4.5	15.362	12.059
12.6	126	53	5.5	9.0	9.0	4.5	15.692	12.318
14a	140	58	6.0	9.5	9.5	4.8	18.516	14.535
14b	140	60	8.0	9.5	9.5	4.8	21.316	16.733
16a	160	63	6.5	10.0	10.0	5.0	21.962	17.24
16b	160	65	8.5	10.0	10.0	5.0	25.162	19.752
18a	180	68	7.0	10.5	10.5	5.2	25.699	20.174
18b	180	70	9.0	10.5	10.5	5.2	29.299	23.000
20a	200	73	7.0	11.0	11.0	5.5	28.837	22.637
20b	200	75	9.0	11.0	11.0	5.5	32.837	25.777
22a	220	77	7.0	11.5	11.5	5.8	31.846	24.999
22b	220	79	9.0	11.5	11.5	5.8	36.246	28.453
24a	240	78	7.0	12.0	12.0	6.0	34.217	26.860
24b		80	9.0				39.017	30.628
24c		82	11.0				43.817	34.396
25a	250	78	7.0				34.917	27.410
25b		80	9.0				39.917	31.335
25c		82	11.0				44.917	35.260
27a	270	82	7.5	12.5	12.5	6.2	39.284	30.838
27b		84	9.5				44.684	35.077
27c		86	11.5				50.084	39.316
28a	280	82	7.5				40.034	31.427
28b		84	9.5				45.634	35.823
28c		86	11.5				51.234	40.219
30a	300	85	7.5	13.5	13.5	6.8	43.902	34.463
30b		87	9.5				49.902	39.173
30c		89	11.5				55.902	43.883
32a	320	88	8.0	14.0	14.0	7.0	48.513	38.083
32b		90	10.0				54.913	43.107
32c		92	12.0				61.313	48.131
36a	360	96	9.0	16.0	16.0	8.0	60.910	47.814
36b		98	11.0				68.110	53.466
36c		100	13.0				75.310	59.118
40a	400	100	10.5	18.0	18.0	9.0	75.068	58.928
40b		102	12.5				83.038	65.208
40c		104	14.5				91.068	71.488
Note	The data of r, r1 will not be as terms of delivery.
