HVG MARINE STEEL 0086: Hot Rolled H Section Steel for Offshore Oil Drilling Platform

Hot rolled H section steel for offshore oil drilling platform is a kind of hot rolled section steel which is used for offshore oil drilling platform. Due to its section shape, it is also called “I-sections”, “wide flange beam”, and “W-beams”. The rolled H section steel are the most often used section for structural purposes. It features equal thick and wide flanges, high bending strength, light weight and cost saving. The hot rolled H section steel for offshore oil drilling platform is manufactured according to Standard GB/T11263-2010, YB/T 4274-2012 and Japanese Standard JIS G3192. The mainly dimension range is as following: height in the range of 100~900mm, width in the range of 100~300mm and the flange thickness in the range of 8~50mm. If you have any special requirements, please contact us. We will try our best to fulfill you. If you want to know more details, welcome to contact us!

Features

Efficient shape for carrying shear and bending force in the plane of the web
High reliability
To reduce the end-product’s weight
Standard sizes with a little tolerances
Full selection of dimensions

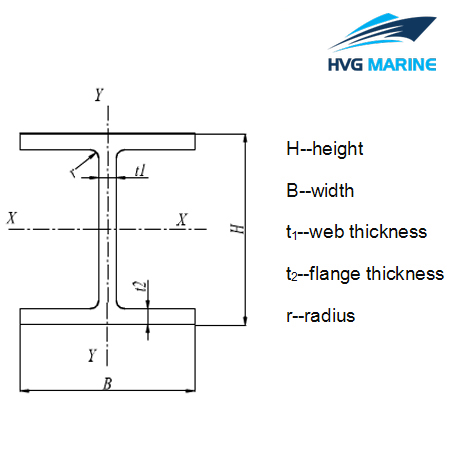

Profile of Hot Rolled H Section Steel for Offshore Oil Drilling Platform

Technical specification:

Product Details

Project	Data
Steel Grade	SM490YB
Standards	GB/T11263-2010, YB/T 4274-2012, JIS G3192
Type	Hot Rolled
Height	HW100~400mm HM150~600mm HN150~900mm
Length	6~18m
Application	Offshore oil drilling platforms
Note	HW represents H section steel with wide flanges, HM represents H section steel with middle flanges, and HN represents H section steel with narrow flanges.
