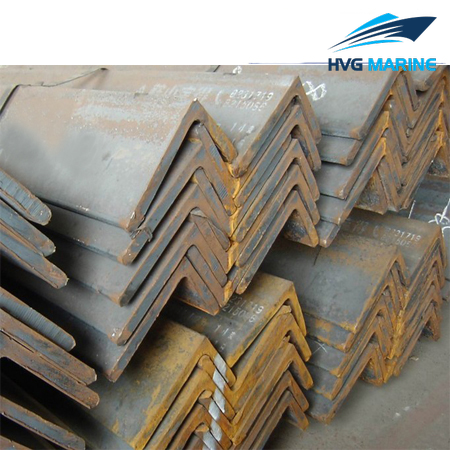

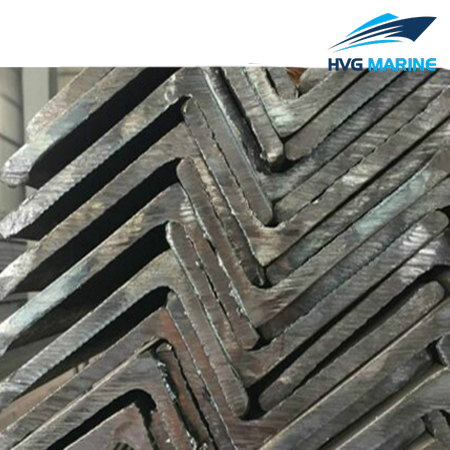

HVG MARINE STEEL 0061: Japanese L-Section Steel

The Japanese L-section steel is a sort of steel angles. It is also known as “unequal leg and thickness angles”, “T-sections”. The difference between unequal-leg angles and L-section steel is that the unequal-leg angles have the same thick flanges, but L-section steel not. Compared with bulb flats, the Japanese L-section steel has larger section modulus and rigidity. What’s more, under the condition of same section modulus, the Japanese L-section steel can increase the loading and economic benefits. It is described by both leg length (longer first) and the both wall thickness (thinner first), eg. L250×90×9×12. It is often used for shipbuilding. In addition to shipbuilding, the Japanese L-section steel can be used for bridges, power transmission towers, beams… We are capable of supplying a wide range of steel grades and dimensions of the angles. If you are interested in our products, welcome to contact us.

Features

Made of high quality steel
Full selection of steel grades
To meet the requirements of JIS G3192-2008
Standard-sized, well-shaped, reliable
A wide range of dimensions

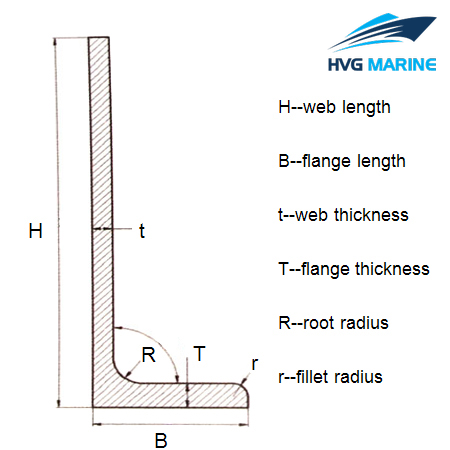

Profile of Japanese L-Section Steel

Technical specification:

Dimensions of Japanese L-Section Steel

Type	Nominal Weight M (kg/m)	Sectional Area A (cm2)	Sectional Dimension
Type	Nominal Weight M (kg/m)	Sectional Area A (cm2)	H	B	t	T	R	r
L200×90×9×12	22.0	28.1	200	90	9	12	15	7.5
L225×90×9×12	23.8	30.3	225	90	9	12	15	7.5
L250×90×9×13	26.2	33.4	250	90	9	13	15	7.5
L250×90×10.5×15	30.3	38.5	250	90	10.5	15	15	7.5
L250×90×11.5×16	32.7	41.7	250	90	11.5	16	15	7.5
L275×100×10.5×14	32.8	41.8	275	100	10.5	14	15	7.5
L300×100×10.5×15	35.6	45.3	300	100	10.5	15	15	7.5
L300×100×11.5×16	38.5	49.0	300	100	11.5	16	15	7.5
L325×120×10.5×14	39.3	50.1	325	120	10.5	14	20	10
L325×120×11.5×15	42.6	54.3	325	120	11.5	15	20	10
L350×120×10.5×16	43.1	54.9	350	120	10.5	16	20	10
L350×120×11.5×18	47.4	60.4	350	120	11.5	18	20	10
L375×120×10.5×18	46.9	59.7	375	120	10.5	18	20	10
L375×120×11.5×20	51.4	65.4	375	120	11.5	20	20	10
L400×120×11.5×23	56.2	71.6	400	120	11.5	23	20	10
L425×120×11.5×23	59.3	75.5	425	120	11.5	24	20	10
L450×120×11.5×25	62.4	79.5	450	120	11.5	25	20	10
L475×120×11.5×28	67.2	85.6	475	120	11.5	28	20	10
L475×120×12.5×30	72.4	92.2	475	120	12.5	30	20	10
L500×120×12.5×33	77.4	98.6	500	120	12.5	33	20	10
L500×120×13.5×35	82.8	105	500	120	13.5	35	20	10
