HVG MARINE STEEL 0015: CCS Pressure Steel Pipes and Tubes

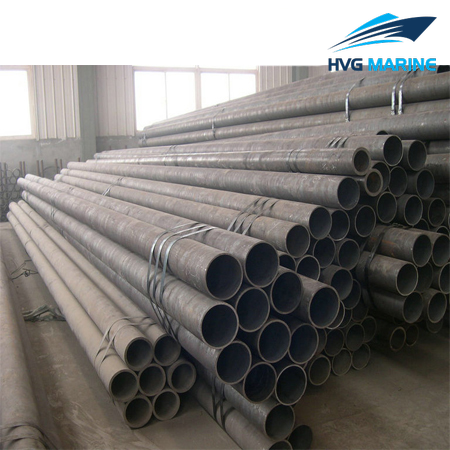

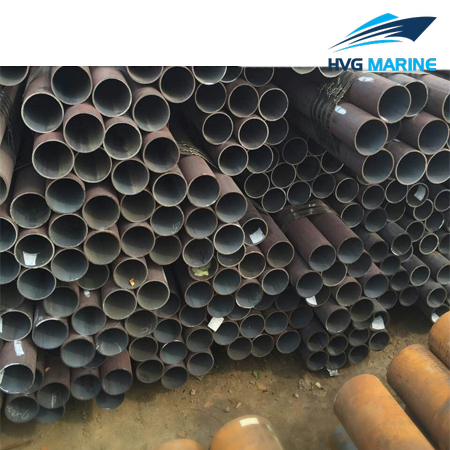

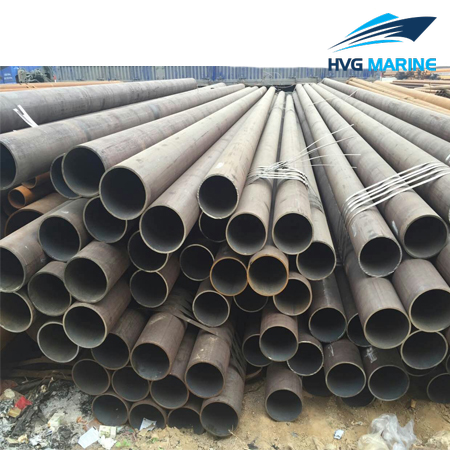

CCS pressure steel pipes and tubes are a kind of marine steel tubes used for pressure piping. The CCS pressure steel pipes and tubes are approved by HVG. Materials of the tube conform to the requirements of GB/T 5312, and the specifications meet the standard GB/T 17395. Please contact us if you require other specifications, and we will customize pipes for you. There are five steel grades for the pipe: 320, 360, 410, 460, 490. The CCS pressure steel pipes and tubes can be divided into three gradesⅠ,Ⅱ,Ⅲ, according to design pressure and design temperature. Excepting the CCS pressure steel pipes and tubes, we also supply CCS seamless steel pipes, CCS boiler steel pipes, CCS stainless steel pipes… Please contact us for our whole product range!

Technical specification:

Pipe Grades of CCS Pressure Steel Pipes and Tubes
Steel Grades and Chemical Composition

Grade	Ⅰ		Ⅱ		Ⅲ
Media	Design Pressure MPa	Design Temperature ℃	Design Pressure MPa	Design Temperature ℃	Design Pressure MPa	Design Temperature ℃
Media	>		–		≤
Steam and hot oil	1.6	300	0.7~1.6	170~300	0.7	170
Fuel oil	1.6	150	0.7~1.6	60~150	0.7	60
Other media	4.0	300	1.6~4.0	200~300	1.6	200
Note	1. When a pipe’s design temperature or design pressure meets requirements for gradeⅠon table A , the pipe will be certified as gradeⅠpipe. When a pipe’s design temperature and design pressure both meets requirements for gradeⅡ on table A , the pipe will be certified as grade Ⅱ pipe. 2. Other media refer to air, water, lubricating oil, hydraulic oil… 3. Grade Ⅲ pipes can be made according to national standards agreed by CCS.

Steel Grade	Chemical Composition %
	C	Si	Mn	S	P	Residual Elements
						Cr	Mo	Ni	Cu	gross
320	≤0.16	–	0.40~0.70	≤0.020	≤0.025	≤0.25	≤0.10	≤0.30	≤0.30	≤0.70
360	≤0.17	≤0.35	0.40~0.80
410	≤0.21	≤0.35	0.40~1.20
460	≤0.22	≤0.35	0.80~1.20
490	≤0.23	≤0.35	0.80~1.50
