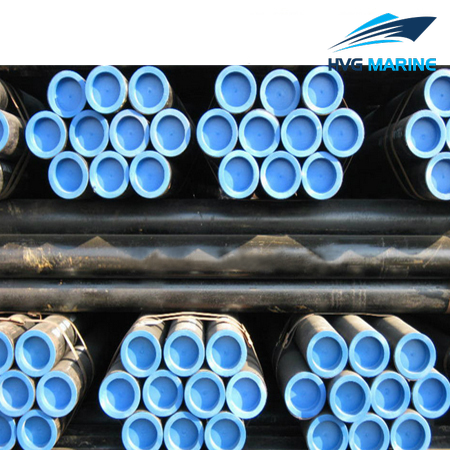

HVG MARINE STEEL 0011: CCS Steel Pipes and Tubes

CCS steel pipes and tubes refer to marine pipes certified by HVG. The CCS steel pipes and tubes are made of carbon steel, carbon-manganese steel, stainless steel, alloy steel. Specifications of the pipe are in line with CB/T 3075. Welded and seamless pipes are both available. We can customize pipes if you have specific requirements for specifications and materials. The pipes are applied to boilers, heat exchangers and pressure piping.

We have built long-term partnership with excellent mills, so we are able to provide you a full line of products with competitive prices. If you want to know more details, welcome to contact us!

Technical specification:

Regular Specifications of CCS Steel Pipes and Tubes for Ships
Regular Specifications of CCS Steel Pipes and Tubes for Warships

Nominal Dimension DN	Outer Diameter		A			B			C
	First Series	Second Series	Wall Thickness mm	Nominal Weight kg/m		Wall Thickness mm	Nominal Weight kg/m		Wall Thickness mm	Nominal Weight kg/m
10	17.2	17	2.5	0.894		–	–		5.0	1.48
15	21.3	22	3.0	1.33		4.0	1.68		5.5	2.10
20	26.9	27		1.78			2.27		6.5	3.11
25	33.7	34	3.5	2.63		4.5	3.27			4.41
32	42.4	42		3.32		5.0	4.56		7.0	6.04
40	48.3	48		3.84			5.30		9.0	8.66
50	60.3	60	4.0	5.52		5.5	7.39		9.5	11.83
65	76.1	76	5.0	8.75		7.0	11.91		11.5	18.29
80	88.9	89	5.5	11.33		7.5	15.07		13.5	25.14
100	114.3	114	6.0	15.98		8.5	22.12		16.0	38.67
125	139.7	140	6.5	21.40		9.5	30.57			48.93
150	168.3	168	7.0	27.79		11.0	42.59			59.98
175	193.7	194	7.5	34.50		12.7	56.78			66.22
200	219.1	219	8.0	41.63			61.26			80.10
225	–	245	8.5	49.58			72.76			90.36
250	273		9.5	61.73			77.24			101.41
300	323.9	325		73.92			92.63			121.93
350	355.6	377		81.18	86.10		101.80	108.02		134.16	142.45
400	406.4	426		92.89	97.58		116.60	122.52		158.89	161.78
450	457	480		104.84	110.23		131.69	138.50		174.01	183.09
500	508	530		116.79	121.95		146.79	153.30		194.14	202.82
550	559		9.5	128.97			162.17			214.65
600	610	630		140.69	145.37		176.97	182.89		234.38	242.28
650	660			152.40			191.77			254.11
700	711	720		164.35	166.46		206.86	209.52		274.24	277.79
750	762			176.30			234.68			294.36
800	813	820		188.25	189.89		250.65	252.85		314.48	384.96
850	864			200.20			266.63			334.61
900	914	920		211.91	213.32		282.29	284.17		354.34	356.70
1000	1016	1020		235.81	236.74		314.23	315.49		394.58	396.16

Nominal Dimensions DN	Outer Diameter	A		B		C
Nominal Dimensions DN	Outer Diameter	Wall Thickness mm	Nominal Weight kg/m	Wall Thickness mm	Nominal Weight kg/m	Wall Thickness mm	Nominal Weight kg/m
10	17	2.0	0.740	2.5	0.894	3.0	1.04
15	22		0.986		1.20	3.0	1.41
20	27		1.23		1.51	4.0	2.27
25	34	3.0	2.29	3.0	2.29	4.0	2.96
32	42		2.89	3.5	3.32	4.5	4.16
40	48		3.33		3.84	5.0	5.30
50	60		4.22		4.88	5.0	6.78
65	76		5.40	4.0	7.10	7.0	11.91
100	114	4.0	10.85	5.0	13.44	8.0	20.91
125	140	4.5	15.04	5.0	16.65	9.0	29.08
150	168	4.5	18.14	6.0	23.97	10.0	38.97
175	194	5.0	23.31	8.0	36.70	11.0	49.64
225	245	6.5	38.23	9.0	52.38	13.0	74.38
